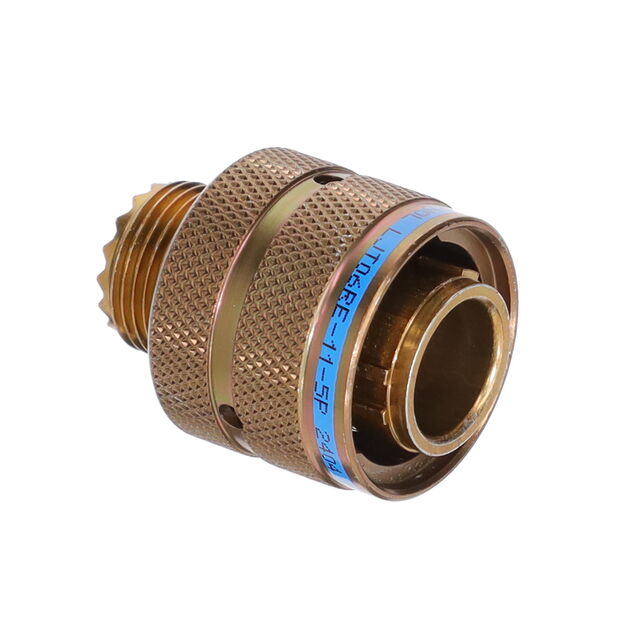

LJT06RE-11-5P
ActiveAmphenol Aerospace Operations
PLUG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LJT06RE-11-5P
ActiveAmphenol Aerospace Operations
PLUG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LJT06RE-11-5P |
|---|---|
| Applications | Aviation, Marine, Military |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | 1.27 µm |
| Contact Finish Thickness - Mating | 50 µin |
| Contact Material | Copper Alloy |
| Fastening Type | Bayonet Lock |
| Features | Coupling Nut |
| Ingress Protection | Environment Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -65 ░C |
| Orientation | N |
| Primary Material | Metal |
| Qualification | MIL-DTL-38999 Series I |
| Shell Finish | Cadmium over Nickel |
| Shell Material | Aluminum Alloy |
| Shell Size - Insert | 11-5 |
| Shielding | Shielded |
| Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 179.38 | |
| 1 | $ 86.13 | |||
| 10 | $ 166.22 | |||
| 10 | $ 74.65 | |||
| 25 | $ 65.87 | |||
| 25 | $ 160.24 | |||
| 50 | $ 159.05 | |||
| 50 | $ 58.93 | |||
| 100 | $ 51.68 | |||
Description
General part information
LJT06RE11 Series
5 Position Circular Connector Plug, Male Pins Crimp
