18882-4PG-522

Active

Conxall/Switchcraft

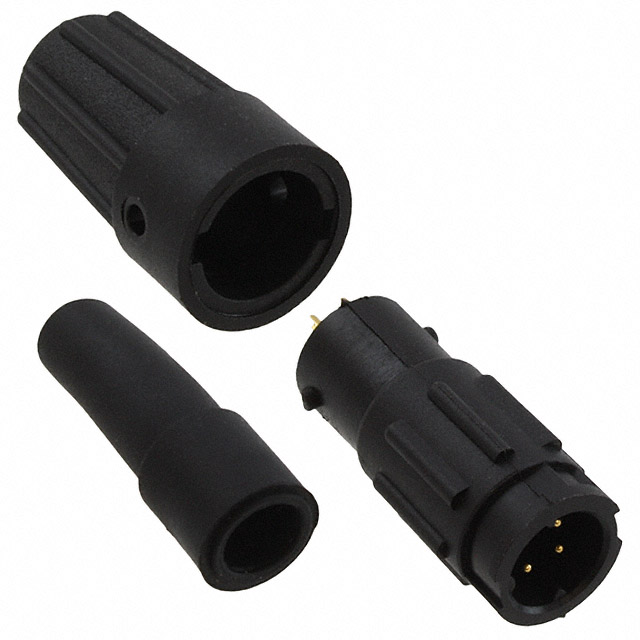

CONN RCPT MALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	18882-4PG-522	18882-4P Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening [Max] [diameter]	5.84 mm	5.84 mm
Cable Opening [Max] [diameter]	0.23 in	0.23 in
Cable Opening [Min] [diameter]	0.22 in	0.22 in
Cable Opening [Min] [diameter]	5.59 mm	5.59 mm
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	6 A	6 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	4	4
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 VAC	600 VAC

CONN RCPT MALE 4P GOLD SLDR CUP

Part	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Shielding	Contact Finish - Mating	Applications	Orientation	Voltage Rating	Material Flammability Rating	Mounting Type	Contact Material	Color	Current Rating (Amps)	Number of Positions	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Backshell Material, Plating	Features	Connector Type	Primary Material
Conxall/Switchcraft 18882-4PG-522	5.84 mm	0.22 in	5.59 mm	0.23 in	Unshielded	Gold	Data, Industrial, Instrumentation, Medical	Keyed	600 VAC	UL94 HB	Free Hanging (In-Line)	Copper Alloy	Black	6 A	4	Bayonet Lock	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Thermoplastic	Backshell	Male Pins, Receptacle	Plastic
Conxall/Switchcraft 18882-4PG-315					Unshielded	Gold	Data, Industrial, Instrumentation, Medical	Keyed	600 VAC	UL94 HB	Free Hanging (In-Line)	Copper Alloy	Black	6 A	4	Bayonet Lock	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Thermoplastic	Backshell	Male Pins, Receptacle	Plastic

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Solder Cup
