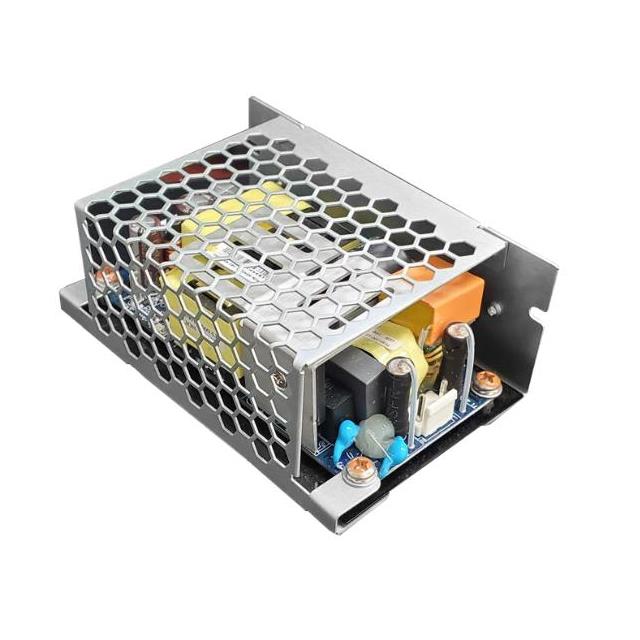

Specification	ASM201-240-BEH-PF1

Applications	ITE (Commercial), Medical
Approval Agency	CB, cTUVus, TUV, CSA, CE
Current - Output 1	5.9 A
Efficiency	94 %
Features	Standby Output, Universal Input
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Power (Watts)	202 W, 142 W
Size / Dimension Height	1.57 in
Size / Dimension Length	4.17 in
Size / Dimension Width	2.68 in
Standard Number	60950-1, 62368-1, 60601-1
Type	Enclosed
Voltage - Input (AC) Maximum	240 VAC
Voltage - Input (AC) Minimum	80 V
Voltage - Isolation	4000 Vpk
Voltage - Output 1	24 V

ASM201 Series

Part	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Mounting Type	Features	Operating Temperature (Max)	Operating Temperature (Min)	Type	Standard Number	Number of Outputs	Current - Output 1	Applications	Voltage - Input (AC) Maximum	Voltage - Input (AC) Minimum	Efficiency	Voltage - Output 1	Voltage - Isolation	Approval Agency	Power (Watts)	Minimum Load Required
Astrodyne TDI ASM201-280-BNH-PF1	1.11 in	4 in	2 in	Chassis Mount	Standby Output Universal Input	85 °C	-40 °C	Open Frame	60601-1 60950-1 62368-1	1	5 A	ITE (Commercial) Medical	240 VAC	80 V	94 %	28 V	4000 Vpk	CB CE CSA cTUVus TUV	140 W 199 W	No
Astrodyne TDI ASM201-190-BNH-PF1	1.11 in	4 in	2 in	Chassis Mount	Standby Output Universal Input	85 °C	-40 °C	Open Frame	60601-1 60950-1 62368-1	1	7.4 A	ITE (Commercial) Medical	240 VAC	80 V	93 %	19 V	4000 Vpk	CB CE CSA cTUVus TUV	141 W 200 W	No
Astrodyne TDI ASM201-480-BNH-PF1	1.11 in	4 in	2 in	Chassis Mount	Standby Output Universal Input	85 °C	-40 °C	Open Frame	60601-1 60950-1 62368-1	1	2.9 A	ITE (Commercial) Medical	240 VAC	80 V	95 %	48 V	4000 Vpk	CB CE CSA cTUVus TUV	139 W 202 W	No
Astrodyne TDI ASM201-120-BET-PF1	1.57 in	4.17 in	2.68 in	Chassis Mount	Universal Input	85 °C	-40 °C	Enclosed	60601-1 60950-1 62368-1	1	16.7 A	ITE (Commercial) Medical	264 V	80 V	93 %	12 V	4000 Vpk	CB CSA cTUVus TUV	200 W	No
Astrodyne TDI ASM201-240-BEH-PF1	1.57 in	4.17 in	2.68 in	Chassis Mount	Standby Output Universal Input	85 °C	-40 °C	Enclosed	60601-1 60950-1 62368-1	1	5.9 A	ITE (Commercial) Medical	240 VAC	80 V	94 %	24 V	4000 Vpk	CB CE CSA cTUVus TUV	142 W 202 W	No
Astrodyne TDI ASM201-540-BEH-PF1	1.57 in	4.17 in	2.68 in	Chassis Mount	Standby Output Universal Input	85 °C	-40 °C	Enclosed	60601-1 60950-1 62368-1	1	2.6 A	ITE (Commercial) Medical	240 VAC	80 V	95 %	54 V	4000 Vpk	CB CE CSA cTUVus TUV	140 W 200 W	No
Astrodyne TDI ASM201-150-BEH-PF1	1.57 in	4.17 in	2.68 in	Chassis Mount	Standby Output Universal Input	85 °C	-40 °C	Enclosed	60601-1 60950-1 62368-1	1	9.4 A	ITE (Commercial) Medical	240 VAC	80 V	93 %	15 V	4000 Vpk	CB CE CSA cTUVus TUV	141 W 201 W	No
Astrodyne TDI ASM201-360-BEH-PF1	1.57 in	4.17 in	2.68 in	Chassis Mount	Standby Output Universal Input	85 °C	-40 °C	Enclosed	60601-1 60950-1 62368-1	1	3.8 A	ITE (Commercial) Medical	240 VAC	80 V	94 %	36 V	4000 Vpk	CB CE CSA cTUVus TUV	137 W 198 W	No
Astrodyne TDI ASM201-360-BNH-PF1	1.11 in	4 in	2 in	Chassis Mount	Standby Output Universal Input	85 °C	-40 °C	Open Frame	60601-1 60950-1 62368-1	1	3.8 A	ITE (Commercial) Medical	240 VAC	80 V	94 %	36 V	4000 Vpk	CB CE CSA cTUVus TUV	137 W 198 W	No
Astrodyne TDI ASM201-150-BET-PF1	1.57 in	4.17 in	2.68 in	Chassis Mount	Universal Input	85 °C	-40 °C	Enclosed	60601-1 60950-1 62368-1	1	13.4 A	ITE (Commercial) Medical	264 V	80 V	93 %	15 V	4000 Vpk	CB CSA cTUVus TUV	200 W	No

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

ASM201-240-BEH-PF1 | Datasheet
