IPL1-102-01-L-S-K

Active

Samtec Inc.

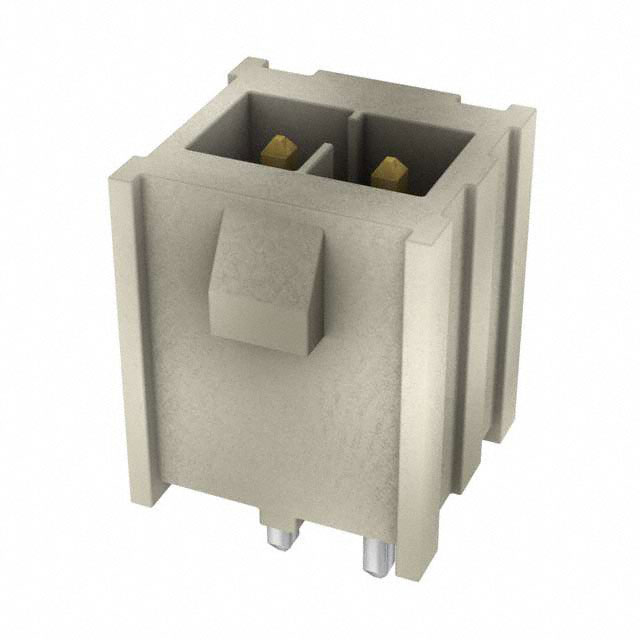

SHROUDED HEADER, 2.54MM, THT VERT, 2 POSITION, 1ROW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IPL1 Series Other Related Documents 01 +4

IPL1-102-01-L-S-K

Active

Samtec Inc.

SHROUDED HEADER, 2.54MM, THT VERT, 2 POSITION, 1ROW

Deep-Dive with AI

DocumentsDatasheet IPL1 Series Other Related Documents 01 +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IPL1-102-01-L-S-K

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	5.46 mm
Contact Length - Mating	0.215 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Locking Ramp
Insulation Color	Natural
Insulation Height	8.13 mm
Insulation Height	0.32 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	954 VDC, 675 VAC

IPL1-102 Series

Part	Style	Insulation Material	Insulation Color	Termination	Contact Length - Mating	Contact Length - Mating	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Mounting Type	Fastening Type	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Number of Rows	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Shrouding	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Contact Finish - Mating	Voltage Rating	Insulation Height	Insulation Height	Number of Positions	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features
Samtec Inc. IPL1-102-01-L-D-RA-K	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Natural	Solder	5.46 mm	0.215 in	Phosphor Bronze	2.54 mm	0.1 in	Tin	Through Hole Right Angle	Locking Ramp	2.16 mm	0.085 in	0.1 in	2.54 mm	2	Header	10 çin	0.25 çm	UL94 V-0	Shrouded - 4 Wall	All	-55 °C	125 °C	Square	Gold	675 VAC 954 VDC	7.37 mm	0.29 in	4	Male Pin
Samtec Inc. IPL1-102-01-H-D-P	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Natural	Solder	5.46 mm	0.215 in	Phosphor Bronze	2.54 mm	0.1 in	Gold	Through Hole	Locking Ramp			0.1 in	2.54 mm	2	Header	30 Áin	0.76 Ám	UL94 V-0	Shrouded - 4 Wall	All	-55 °C	125 °C	Square	Gold	675 VAC 954 VDC	8.13 mm	0.32 in	4	Male Pin	0.12 in	3.05 mm	3 µin	0.076 µm
Samtec Inc. IPL1-102-01-L-S-K	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Natural	Solder	5.46 mm	0.215 in	Phosphor Bronze			Tin	Through Hole	Locking Ramp			0.1 in	2.54 mm	1	Header	10 çin	0.25 çm	UL94 V-0	Shrouded - 4 Wall	All	-55 °C	125 °C	Square	Gold	675 VAC 954 VDC	8.13 mm	0.32 in	2	Male Pin	0.12 in	3.05 mm
Samtec Inc. IPL1-102-01-F-D-RE1-K-WT	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Natural	Solder	5.46 mm	0.215 in	Phosphor Bronze	2.54 mm	0.1 in	Tin	Through Hole Right Angle	Locking Ramp	2.16 mm	0.085 in	0.1 in	2.54 mm	2	Header	3 µin	0.076 µm	UL94 V-0	Shrouded - 4 Wall	All	-55 °C	125 °C	Square	Gold	675 VAC 954 VDC	8.25 mm	0.325 in	4	Male Pin					Board Guide
Samtec Inc. IPL1-102-01-S-S-RE1-K	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Natural	Solder	5.46 mm	0.215 in	Phosphor Bronze			Tin	Through Hole Right Angle	Locking Ramp	2.16 mm	0.085 in	0.1 in	2.54 mm	1	Header	30 Áin	0.76 Ám	UL94 V-0	Shrouded - 4 Wall	All	-55 °C	125 °C	Square	Gold	675 VAC 954 VDC	6.1 mm	0.24 in	2	Male Pin
Samtec Inc. IPL1-102-02-S-S-K	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Natural	Solder	5.46 mm	0.215 in	Phosphor Bronze			Tin	Surface Mount	Locking Ramp			0.1 in	2.54 mm	1	Header	30 Áin	0.76 Ám	UL94 V-0	Shrouded - 4 Wall	All	-55 °C	125 °C	Square	Gold	675 VAC 954 VDC	8.13 mm	0.32 in	2	Male Pin
Samtec Inc. IPL1-102-03-L-SH-K	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Natural	Solder	5.46 mm	0.215 in	Phosphor Bronze			Tin	Surface Mount Right Angle	Locking Ramp			0.1 in	2.54 mm	1	Header	10 çin	0.25 çm	UL94 V-0	Shrouded - 4 Wall	All	-55 °C	125 °C	Square	Gold	675 VAC 954 VDC	5.6 mm	0.22 in	2	Male Pin					Board Guide
Samtec Inc. IPL1-102-01-S-D-RA-P	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Natural	Solder	5.46 mm	0.215 in	Phosphor Bronze	2.54 mm	0.1 in	Tin	Through Hole Right Angle	Locking Ramp	2.16 mm	0.085 in	0.1 in	2.54 mm	2	Header	30 Áin	0.76 Ám	UL94 V-0	Shrouded - 4 Wall	All	-55 °C	125 °C	Square	Gold	675 VAC 954 VDC	7.37 mm	0.29 in	4	Male Pin
Samtec Inc. IPL1-102-02-L-SH-K	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Natural	Solder	5.46 mm	0.215 in	Phosphor Bronze			Tin	Surface Mount Right Angle	Locking Ramp			0.1 in	2.54 mm	1	Header	10 çin	0.25 çm	UL94 V-0	Shrouded - 4 Wall	All	-55 °C	125 °C	Square	Gold	675 VAC 954 VDC	5.6 mm	0.22 in	2	Male Pin					Board Guide
Samtec Inc. IPL1-102-02-S-SH-K-TR	Board to Cable/Wire	Liquid Crystal Polymer (LCP)	Natural	Solder	5.46 mm	0.215 in	Phosphor Bronze			Tin	Surface Mount Right Angle	Locking Ramp			0.1 in	2.54 mm	1	Header	30 Áin	0.76 Ám	UL94 V-0	Shrouded - 4 Wall	All	-55 °C	125 °C	Square	Gold	675 VAC 954 VDC	5.6 mm	0.22 in	2	Male Pin					Board Guide

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.26
		50	$ 1.78
		100	$ 1.48
		500	$ 1.20
		1000	$ 1.06
Newark	Each	1	$ 1.94
		10	$ 1.81
		50	$ 1.68
		100	$ 1.43
		250	$ 1.34
		500	$ 1.24
		1000	$ 1.15

Description

General part information

IPL1-102 Series

The IPL1-102-01-L-S-K is a 2-pole 1-row 2.54mm Mini Mate® Isolated Power Cable Terminal Strip with 10μinch (0.25μm) gold-plated phosphor bronze contacts. The IPL1 series keyed polarization discrete wire header is compatible with IPD1, MMSD, MMSDT, MMSS, MMSST, MMTD, MMTDT, MMTS and MMTST series connectors.
