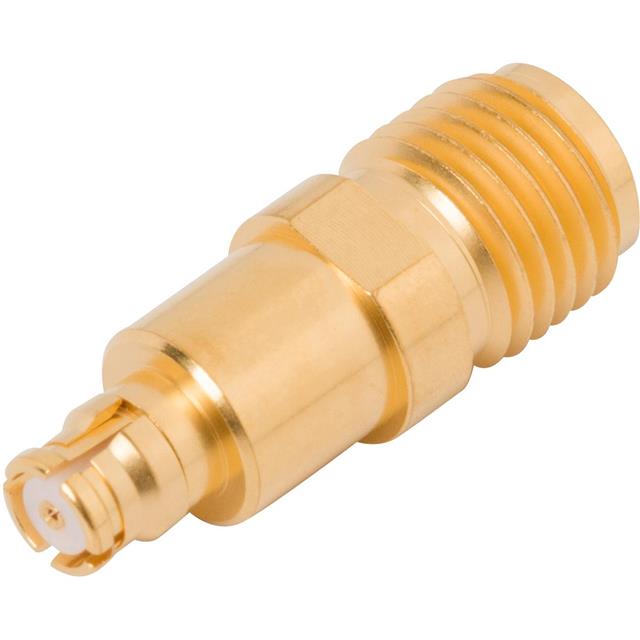

1115-6083

Active

Amphenol SV Microwave

2.92MM FEMALE TO SMP FEMALE ADAP

Search across all available documentation for this part.

Active

Amphenol SV Microwave

2.92MM FEMALE TO SMP FEMALE ADAP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1115-6083	1115-60 Series

Adapter Series	SMP to 2.92mm	SMP to 2.92mm, SMPM
Adapter Series	-	2.92 mm
Adapter Type	Jack to Jack	Jack to Jack
Body Finish	Gold	Gold, Gold; Passivated
Body Material	Beryllium Copper	Beryllium Copper, Stainless Steel
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Center Gender	Female to Female	Female to Female
Conversion Type	Between Series	Between Series
Convert From (Adapter End)	2.92 mm	2.92 mm
Convert From (Adapter End)	OS-2.9, Jack, Female Socket	OS-2.9, Jack, Female Socket, Female Socket, SMPM Jack
Convert To (Adapter End)	Female Socket, SMP Jack	Female Socket, SMP Jack, OS-2.9 Jack, Female Socket
Convert To (Adapter End)	-	2.92 mm
Dielectric Material	Polytetrafluoroethylene (PTFE)	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On	Threaded, Snap-On
Features	EMI Ring	EMI Ring
Frequency - Max [Max]	40 GHz	40 GHz
Impedance	50 Ohms	50 Ohms
Mating Cycles	500	500
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C	165 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Style	Straight	Straight

2.92MM FEMALE TO SMP FEMALE ADAP

Part	Body Material	Convert From (Adapter End)	Convert From (Adapter End)	Operating Temperature [Min]	Operating Temperature [Max]	Center Gender	Body Finish	Fastening Type	Features	Impedance	Adapter Series	Mating Cycles	Style	Center Contact Material	Adapter Type	Mounting Type	Frequency - Max [Max]	Dielectric Material	Center Contact Plating	Conversion Type	Convert To (Adapter End)	Adapter Series	Convert To (Adapter End)
Amphenol SV Microwave 1115-6083	Beryllium Copper	2.92 mm	Jack, Female Socket, OS-2.9	-65 ░C	165 °C	Female to Female	Gold	Snap-On, Threaded	EMI Ring	50 Ohms	SMP to 2.92mm	500	Straight	Beryllium Copper	Jack to Jack	Free Hanging (In-Line)	40 GHz	Polytetrafluoroethylene (PTFE)	Gold	Between Series	Female Socket, SMP Jack
Amphenol SV Microwave 1115-6088	Beryllium Copper, Stainless Steel		Female Socket, SMPM Jack	-65 ░C	165 °C	Female to Female	Gold; Passivated	Snap-On, Threaded		50 Ohms	SMPM	500	Straight	Beryllium Copper	Jack to Jack	Free Hanging (In-Line)	40 GHz	Polytetrafluoroethylene (PTFE)	Gold	Between Series	OS-2.9 Jack, Female Socket	2.92 mm	2.92 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To SMP Jack, Female Socket 50 Ohms
