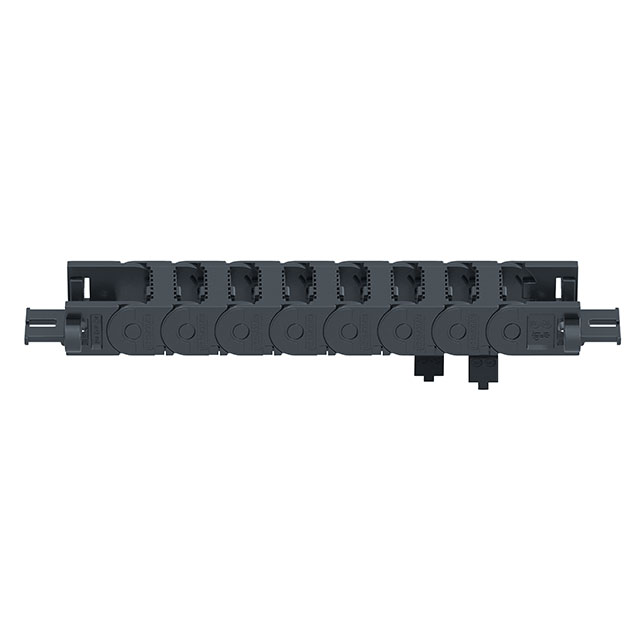

E2I-15-50-028-0

Active

Igus

CABLE CARRIER .76H X 2.26W 1=1FT

Search across all available documentation for this part.

Active

Igus

CABLE CARRIER .76H X 2.26W 1=1FT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

CABLE CARRIER .76H X 2.26W 1=1FT

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	E2I-15-50-028-0	E2I-15 Series

Cavity Height [z]	0.57 in	0.57 in
Cavity Height [z]	14.48 mm	14.48 mm
Cavity Width [y]	1.97 in	0.63 - 1.97 in
Cavity Width [y]	50.04 mm	16 - 50.04 mm
Frame Type	Open	Open
Link Pitch	0.79 in	0.79 in
Link Pitch	20.07 mm	20.07 mm
Loading Side	Inside and Outside Bend	Inside and Outside Bend
Material	Igumid G	Igumid G
Minimum Bend Radius	27.94 mm	27.94 mm
Minimum Bend Radius [Min] [radius]	1.1 in	1.1 in
Operating Temperature [Max]	120 °C	120 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outer Height	0.76 in	0.76 in
Outer Height	19.3 mm	19.3 mm
Outer Width	-	23.37 mm
Outer Width	-	0.92 in
Outer Width [y]	57.4 mm	57.4 mm
Outer Width [y]	2.26 in	2.26 in

CABLE CARRIER .76H X 2.26W 1=1FT

Part	Cavity Height [z]	Cavity Height [z]	Frame Type	Material	Operating Temperature [Min]	Operating Temperature [Max]	Loading Side	Outer Height	Outer Height	Cavity Width [y]	Cavity Width [y]	Minimum Bend Radius [Min] [radius]	Minimum Bend Radius	Link Pitch	Link Pitch	Outer Width [y]	Outer Width [y]	Outer Width [x]	Outer Width [x]
Igus E2I-15-50-028-0	0.57 in	14.48 mm	Open	Igumid G	-40 °C	120 °C	Inside and Outside Bend	0.76 in	19.3 mm	1.97 in	50.04 mm	1.1 in	27.94 mm	0.79 in	20.07 mm	57.4 mm	2.26 in
Igus E2I-15-16-028-0	0.57 in	14.48 mm	Open	Igumid G	-40 °C	120 °C	Inside and Outside Bend	0.76 in	19.3 mm	0.63 in	16 mm	1.1 in	27.94 mm	0.79 in	20.07 mm			23.37 mm	0.92 in
