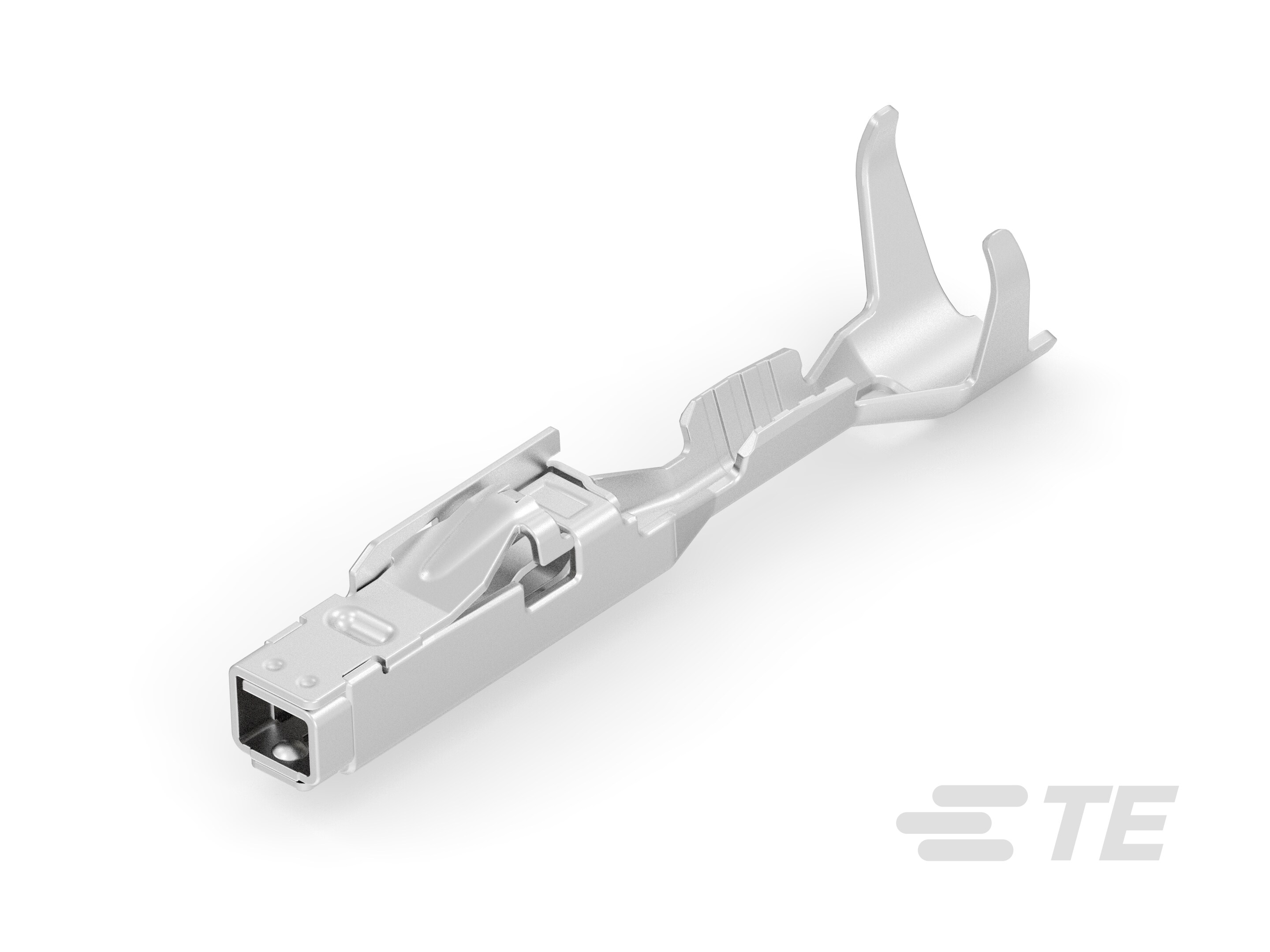

Specification	2141970-2

Contact Finish	Gold
Contact Finish Thickness	31.5 µin
Contact Termination	Crimp
Pin or Socket	Socket
Type	Stamped
Wire Gauge (AWG) (Max)	26 AWG
Wire Gauge (AWG) (Min)	24 AWG

MCON 1.2mm Series

...
