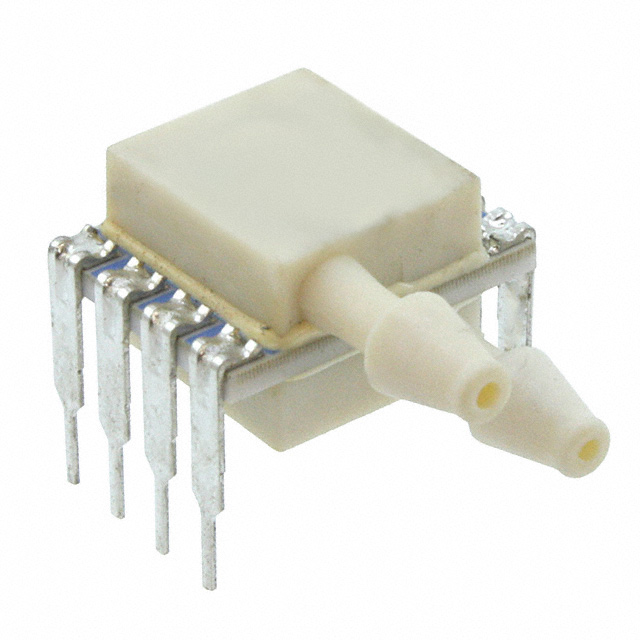

4515-DS5A020DP

Active

TE Connectivity Measurement Specialties

SENSOR PRESS DIFF 20" H2O 8DIP

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

SENSOR PRESS DIFF 20" H2O 8DIP

Technical Specifications

Parameters and characteristics for this part

Specification	4515-DS5A020DP

Accuracy	0.25 %
Features	Temperature Compensated, Amplified Output
Maximum Pressure	20 PSI
Maximum Pressure	137.9 kPa
Mounting Type	Through Hole
Operating Pressure	4.98 kPa
Operating Pressure	0.72 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-10 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	8-DIP Module
Port Size	0.14 "
Port Size	3.56 mm
Port Size	Tube, Dual, Male
Port Style	Barbed
Pressure Type	Differential
Termination Style	PC Pin

Part	Port Size	Port Size	Port Size	Output Type	Mounting Type	Output	Accuracy	Port Style	Features	Applications	Termination Style	Pressure Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Operating Pressure	Operating Pressure	Voltage - Supply	Maximum Pressure	Maximum Pressure	Output [Min]	Output [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]
TE Connectivity Measurement Specialties 4515DO-DS3BK030DPL	0.14 "	3.56 mm	Dual Male Tube	I2C	Through Hole	14 b	0.25 %	Barbed	Temperature Compensated	Board Mount	PC Pin	Differential	8-DIP Module	-10 °C	85 °C	7.48 kPa	1.08 PSI	3.3 V	20 PSI	137.9 kPa
TE Connectivity Measurement Specialties 4515-DS5A020DP	0.14 "	3.56 mm	Dual Male Tube	Analog Voltage	Through Hole		0.25 %	Barbed	Amplified Output Temperature Compensated		PC Pin	Differential	8-DIP Module	-10 °C	85 °C	4.98 kPa	0.72 PSI		20 PSI	137.9 kPa	0.5 V	4.5 V
TE Connectivity Measurement Specialties 4515DO-DS5AI002DP	0.14 "	3.56 mm	Dual Male Tube	I2C	Through Hole	14 b	0.25 %	Barbed	Temperature Compensated		PC Pin	Differential	8-DIP Module	-10 °C	85 °C	0.5 kPa	0.07 PSI						10 PSI	68.95 kPa
TE Connectivity Measurement Specialties 4515DO-DS3BS002DS
TE Connectivity Measurement Specialties 4515DO-DS3BK005DP	0.14 "	3.56 mm	Dual Male Tube	I2C	Through Hole	14 b	0.25 %	Barbed	Temperature Compensated	Board Mount	PC Pin	Differential	8-DIP Module	-10 °C	85 °C	1.25 kPa	0.18 PSI	3.3 V					10 PSI	68.95 kPa

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2	$ 61.31

General part information

Pressure Sensor 0.72PSI (4.98kPa) Differential Male - 0.14" (3.56mm) Tube, Dual 0.5 V ~ 4.5 V 8-DIP Module
