AUIRF7669L2TR

Active

Infineon Technologies

INFINEON’S AUIRF7669L2TR IS A HIGH-PERFORMANCE AUTOMOTIVE MOSFET WITH LOW RDS(ON) AND HIGH CURRENT CAPABILITY. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsData Sheet - AUIRF7669L2TR Datasheet

AUIRF7669L2TR

Active

Infineon Technologies

INFINEON’S AUIRF7669L2TR IS A HIGH-PERFORMANCE AUTOMOTIVE MOSFET WITH LOW RDS(ON) AND HIGH CURRENT CAPABILITY. FIND DATA SHEET, PARAMETERS AND ORDERING INFORMATION.

Deep-Dive with AI

DocumentsData Sheet - AUIRF7669L2TR Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AUIRF7669L2TR

Current - Continuous Drain (Id) @ 25°C	114 A, 19 A
Drain to Source Voltage (Vdss)	100 V
Drive Voltage (Max Rds On, Min Rds On)	10 V
FET Type	N-Channel
Gate Charge (Qg) (Max) @ Vgs [Max]	120 nC
Input Capacitance (Ciss) (Max) @ Vds	5660 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C

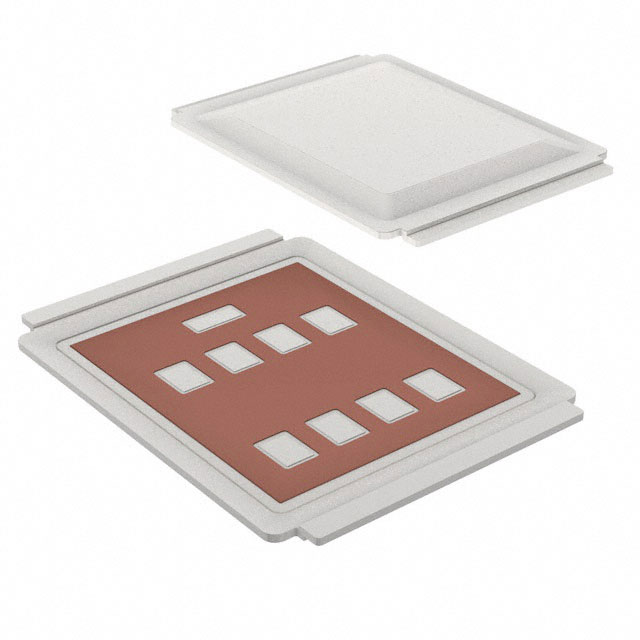

Package / Case	DirectFET™ Isometric L8
Power Dissipation (Max)	100 W, 3.3 W
Rds On (Max) @ Id, Vgs	4.4 mOhm
Supplier Device Package	DirectFET™ Isometric L8
Technology	MOSFET (Metal Oxide)
Vgs (Max)	20 V
Vgs(th) (Max) @ Id	5 V

AUIRF7669 Series

Part	Mounting Type	Rds On (Max) @ Id, Vgs	Vgs (Max)	Technology	Input Capacitance (Ciss) (Max) @ Vds	Drive Voltage (Max Rds On, Min Rds On)	Vgs(th) (Max) @ Id	FET Type	Package / Case	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]
Infineon Technologies AUIRF7669L2TR	Surface Mount	4.4 mOhm	20 V	MOSFET (Metal Oxide)	5660 pF	10 V	5 V	N-Channel	DirectFET™ Isometric L8	100 V	19 A 114 A	DirectFET™ Isometric L8	-55 °C	175 ░C	3.3 W 100 W	120 nC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 10.29
		10	$ 7.10
		100	$ 5.30
		500	$ 4.93
	Digi-Reel®	1	$ 10.29
		10	$ 7.10
		100	$ 5.30
		500	$ 4.93
	Tape & Reel (TR)	4000	$ 4.93
Newark	Each (Supplied on Cut Tape)	1	$ 8.66
		10	$ 6.54
		25	$ 6.44
		50	$ 6.25
		100	$ 6.04

Description

General part information

AUIRF7669 Series

N-Channel 100 V 19A (Ta), 114A (Tc) 3.3W (Ta), 100W (Tc) Surface Mount DirectFET™ Isometric L8
