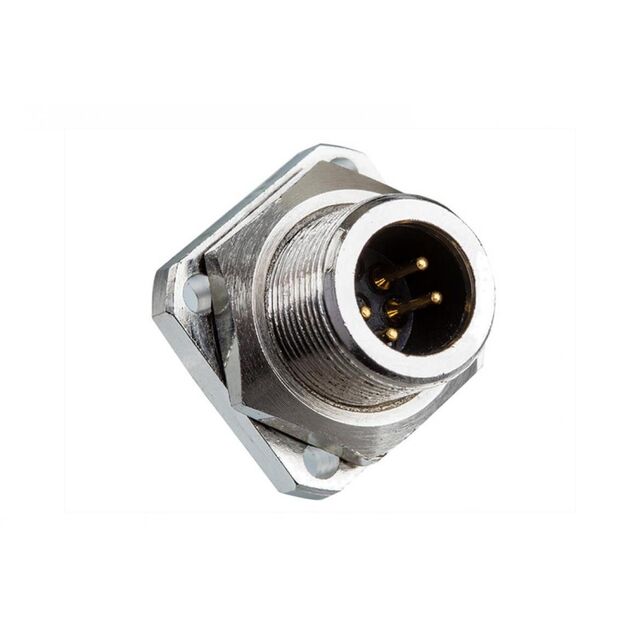

Specification	BSD-06PMMS-SS7001

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	5 A
Fastening Type	Threaded
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Feature	Flange
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	B
Shielding	Shielded
Termination	Solder
Voltage Rating	250 V

BSD-06PMMS Series

Part	Current Rating	Fastening Type	Ingress Protection Description	Ingress Protection IP Rating	Termination	Mounting Type	Shell Size - Insert	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Connector Type	Mounting Feature	Shell Finish	Voltage Rating	Number of Positions	Contact Finish - Mating	Primary Material	Shell Material	Shielding	Color	Orientation
McGill Microwave Systems BSD-06PMMS-SS7001	5 A	Threaded	Dust Tight Waterproof	IP67	Solder	Right Angle Through Hole	B	-40 °C	105 °C	Copper Alloy	Male Pins Receptacle	Flange	Nickel	250 V	6	Gold	Metal	Brass	Shielded	Silver	Keyed
McGill Microwave Systems BSD-06PMMS-SC7001	5 A	Threaded	Dust Tight Waterproof	IP67	Solder	Right Angle Through Hole	B	-40 °C	105 °C	Copper Alloy	Male Pins Receptacle	Bulkhead Front Side Nut	Nickel	250 V	6	Gold	Metal	Brass	Shielded	Silver	Keyed
