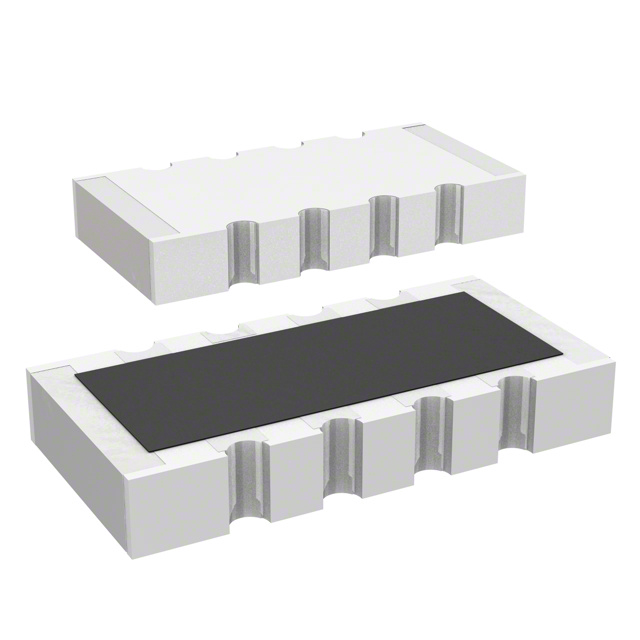

Specification	CAY17-272JALF

Circuit Type	Bussed
Height - Seated (Max)	0.024 in
Mounting Type	Surface Mount
Number of Pins	10
Number of Resistors	8
Operating Temperature (Max)	155 °C
Operating Temperature (Min)	-55 °C
Package / Case	Long Side Terminals, Convex, 1206 (3216 Metric)
Package Name	1206
Power Per Element	62.5 mW
Resistance	2.7 kOhm
Size / Dimension Length	0.126 in
Size / Dimension Width	0.063 in
Temperature Coefficient	250 ppm/°C
Temperature Coefficient (Highest)	250 ppm/°C
Temperature Coefficient (Lowest)	-250 ppm/°C
Tolerance	5 %

CAY17 Series

Part	Temperature Coefficient	Temperature Coefficient (Highest)	Temperature Coefficient (Lowest)	Number of Resistors	Package Name	Package / Case	Operating Temperature (Max)	Operating Temperature (Min)	Circuit Type	Power Per Element	Height - Seated (Max)	Number of Pins	Tolerance	Mounting Type	Size / Dimension Width	Size / Dimension Length	Resistance
Bourns Inc. CAY17-103JALF	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	1206	1206 (3216 Metric) Convex Long Side Terminals	155 °C	-55 °C	Bussed	62.5 mW	0.024 in	10	5 %	Surface Mount	0.063 in	0.126 in	10 kOhm
Bourns Inc. CAY17-360JALF	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	1206	1206 (3216 Metric) Convex Long Side Terminals	155 °C	-55 °C	Bussed	62.5 mW	0.024 in	10	5 %	Surface Mount	0.063 in	0.126 in	36 Ohm
Bourns Inc. CAY17-272JALF	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	1206	1206 (3216 Metric) Convex Long Side Terminals	155 °C	-55 °C	Bussed	62.5 mW	0.024 in	10	5 %	Surface Mount	0.063 in	0.126 in	2.7 kOhm
Bourns Inc. CAY17-221JALF	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	1206	1206 (3216 Metric) Convex Long Side Terminals	155 °C	-55 °C	Bussed	62.5 mW	0.024 in	10	5 %	Surface Mount	0.063 in	0.126 in	220 Ohm
Bourns Inc. CAY17-101JALF	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	1206	1206 (3216 Metric) Convex Long Side Terminals	155 °C	-55 °C	Bussed	62.5 mW	0.024 in	10	5 %	Surface Mount	0.063 in	0.126 in	100 Ohms
Bourns Inc. CAY17-512JALF	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	1206	1206 (3216 Metric) Convex Long Side Terminals	155 °C	-55 °C	Bussed	62.5 mW	0.024 in	10	5 %	Surface Mount	0.063 in	0.126 in	5.1 kOhm
Bourns Inc. CAY17-473JALF	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	1206	1206 (3216 Metric) Convex Long Side Terminals	155 °C	-55 °C	Bussed	62.5 mW	0.024 in	10	5 %	Surface Mount	0.063 in	0.126 in	47 kOhm
Bourns Inc. CAY17-332JALF	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	1206	1206 (3216 Metric) Convex Long Side Terminals	155 °C	-55 °C	Bussed	62.5 mW	0.024 in	10	5 %	Surface Mount	0.063 in	0.126 in	3.3 kOhm
Bourns Inc. CAY17-511JALF	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	1206	1206 (3216 Metric) Convex Long Side Terminals	155 °C	-55 °C	Bussed	62.5 mW	0.024 in	10	5 %	Surface Mount	0.063 in	0.126 in	500 Ohm
Bourns Inc. CAY17-151JALF	250 ppm/°C	250 ppm/°C	-250 ppm/°C	8	1206	1206 (3216 Metric) Convex Long Side Terminals	155 °C	-55 °C	Bussed	62.5 mW	0.024 in	10	5 %	Surface Mount	0.063 in	0.126 in	150 Ohm
