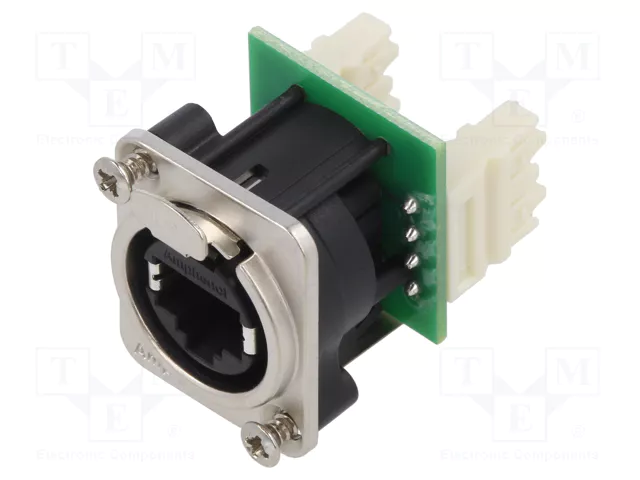

Specification	RJX8FD5110

Applications	AutoMDIX, Power over Ethernet+ (PoE+), 10/100/1000 Base-T
Connector Type	Jack
Contact Finish	Gold
Contact Material	Phosphor Bronze
LED Color	Does Not Contain LED
Mounting Type	Panel Mount, Flange
Number of Ports	1
Number of Rows	1
Operating Temperature (Max)	80 °C
Operating Temperature (Min)	-40 °C
Orientation	Straight
Shielding	Unshielded
Tab Direction	User Selectable
Termination	Color Coded Block, IDC

xlrnet Series

Part	Number of Rows	Number of Ports	Termination	Contact Material	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Tab Direction	Contact Finish	Connector Type	Orientation	Shielding	Applications	LED Color
McGill Microwave Systems RJX8FD5110	1	1	Color Coded Block IDC	Phosphor Bronze	80 °C	-40 °C	Flange Panel Mount	User Selectable	Gold	Jack	Straight	Unshielded	10/100/1000 Base-T AutoMDIX Power over Ethernet+ (PoE+)	Does Not Contain LED

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
