M52-5100445

Active

Harwin Inc.

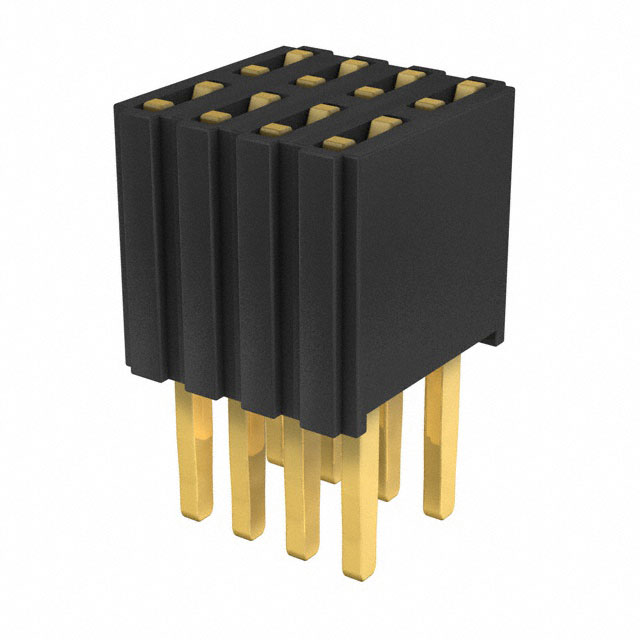

4+4 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

4+4 POS. FEMALE DIL VERTICAL THROUGHBOARD CONN. ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	M52-5100445

Applications	General Purpose, Medical, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Rectangular
Contact Type	Forked
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.6 mm
Insulation Height	0.181 in
Insulation Material	Nylon 6T, Polyamide (PA6T)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Material Flammability Rating	Number of Rows	Number of Positions Loaded	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Shape	Pitch - Mating	Pitch - Mating	Termination	Connector Type	Insulation Color	Applications	Fastening Type	Contact Length - Post	Contact Length - Post	Number of Positions	Contact Material	Insulation Height	Insulation Height	Insulation Material
Harwin Inc. M52-5102545	-40 °C	105 ░C	Through Hole	UL94 V-0	2	All	Forked	2.54 mm	0.1 in	Gold	Rectangular	0.05 in	1.27 mm	Solder	Receptacle	Black	General Purpose Medical Telecommunications	Push-Pull	0.118 in	3 mm	50	Phosphor Bronze	4.6 mm	0.181 in	Nylon 6T Polyamide (PA6T)
Harwin Inc. M52-5100445	-40 °C	105 ░C	Through Hole	UL94 V-0	2	All	Forked	2.54 mm	0.1 in	Gold	Rectangular	0.05 in	1.27 mm	Solder	Receptacle	Black	General Purpose Medical Telecommunications	Push-Pull	0.118 in	3 mm	8	Phosphor Bronze	4.6 mm	0.181 in	Nylon 6T Polyamide (PA6T)
Harwin Inc. M52-5100345	-40 °C	105 ░C	Through Hole	UL94 V-0	2	All	Forked	2.54 mm	0.1 in	Gold	Rectangular	0.05 in	1.27 mm	Solder	Receptacle	Black	General Purpose Medical Telecommunications	Push-Pull	0.118 in	3 mm	6	Phosphor Bronze	4.6 mm	0.181 in	Nylon 6T Polyamide (PA6T)
Harwin Inc. M52-5101045	-40 °C	105 ░C	Through Hole	UL94 V-0	2	All	Forked	2.54 mm	0.1 in	Gold	Rectangular	0.05 in	1.27 mm	Solder	Receptacle	Black	General Purpose Medical Telecommunications	Push-Pull	0.118 in	3 mm	20	Phosphor Bronze	4.6 mm	0.181 in	Nylon 6T Polyamide (PA6T)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1040	$ 0.64
Newark	Each	500	$ 0.73
		1000	$ 0.65

General part information

8 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold
