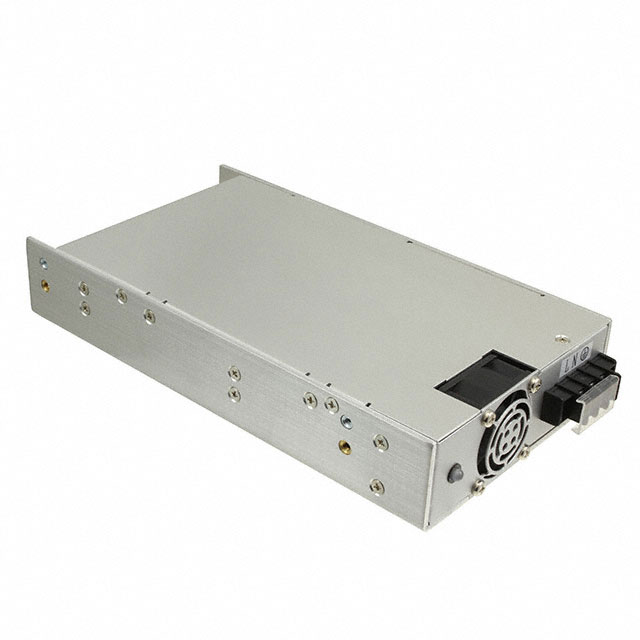

SMH600PS12-EF

Obsolete

XP Power

AC/DC CONVERTER 12V 600W

Search across all available documentation for this part.

Obsolete

XP Power

AC/DC CONVERTER 12V 600W

Technical Specifications

Parameters and characteristics for this part

Specification	SMH600PS12-EF

Applications	ITE (Commercial)
Current - Output 1	50 A
Efficiency	90 %
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	600 W
Size / Dimension [x]	228.6 mm
Size / Dimension [x]	9 in
Size / Dimension [y]	5 "
Size / Dimension [y]	127 mm
Size / Dimension [z]	1.6 "
Size / Dimension [z]	40.6 mm
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

AC/DC CONVERTER 12V 600W

Part	Efficiency	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Features	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output 1	Mounting Type	Minimum Load Required	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Type	Voltage - Isolation
XP Power SMH600PS12-EF	90 %	600 W	90 VAC	264 VAC	ITE (Commercial)	Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input	12 V	70 °C	0 °C	50 A	Chassis Mount		5 "	228.6 mm	127 mm	9 in	1.6 "	40.6 mm	1	Enclosed	3000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 12V 90 ~ 264 VAC Input
