03R-WPJV-3-EM(NN)

Active

JST Sales America Inc.

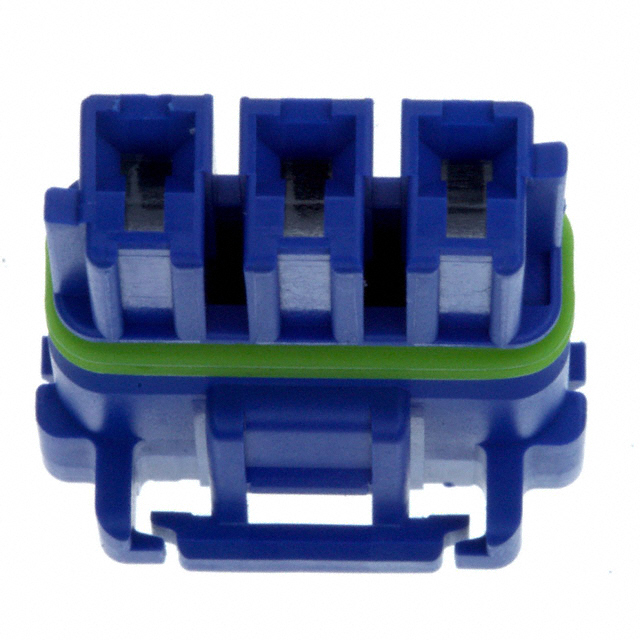

CONN RCPT HSG 3POS 5.00MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN RCPT HSG 3POS 5.00MM

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	03R-WPJV-3-EM(NN)	03R-WPJV Series

Color	Blue	Natural, Red, Blue
Connector Type	Receptacle	Receptacle
Contact Termination	Crimp	Crimp
Contact Type	Female Socket	Female Socket
Fastening Type	Latch Lock	Latch Lock
Features	JIS C 0920 Grade Level 7	JIS C 0920 Grade Level 7
Insulation Material	-	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Rows	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in

CONN RCPT HSG 3POS 5.00MM

Part	Note	Contact Type	Fastening Type	Contact Termination	Features	Pitch [x]	Pitch [x]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Connector Type	Mounting Type	Number of Rows
JST Sales America Inc. 03R-WPJV-1-SM(NN)	Contacts Not Included	Female Socket	Latch Lock	Crimp	JIS C 0920 Grade Level 7	5 mm	0.197 in	Natural	-25 °C	85 °C	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Free Hanging (In-Line)	1
JST Sales America Inc. 03R-WPJV-2-RM(NN)	Contacts Not Included	Female Socket	Latch Lock	Crimp	JIS C 0920 Grade Level 7	5 mm	0.197 in	Red	-25 °C	85 °C		Receptacle	Free Hanging (In-Line)	1
JST Sales America Inc. 03R-WPJV-1-SMM	Contacts Not Included	Female Socket	Latch Lock	Crimp	JIS C 0920 Grade Level 7	5 mm	0.197 in	Natural	-25 °C	85 °C	Polybutylene Terephthalate (PBT), Glass Filled	Receptacle	Free Hanging (In-Line)	1
JST Sales America Inc. 03R-WPJV-2-RMM(NN)	Contacts Not Included	Female Socket	Latch Lock	Crimp	JIS C 0920 Grade Level 7	5 mm	0.197 in	Red	-25 °C	85 °C		Receptacle	Free Hanging (In-Line)	1
JST Sales America Inc. 03R-WPJV-3-EM(NN)	Contacts Not Included	Female Socket	Latch Lock	Crimp	JIS C 0920 Grade Level 7	5 mm	0.197 in	Blue	-25 °C	85 °C		Receptacle	Free Hanging (In-Line)	1
