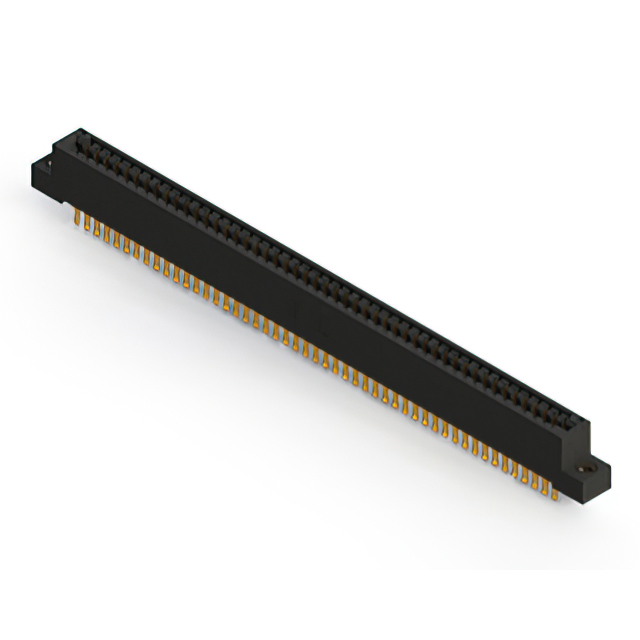

396-098-555-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 98POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
396-098-555-208
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 98POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 396-098-555-208 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 98 |
| Number of Positions/Bay/Row [custom] | 49 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 2 |
396-098 Series
...
| Part | Pitch [x] | Pitch [x] | Number of Rows | Material - Insulation | Termination Rows | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Termination | Number of Positions | Card Type | Features | Gender | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Contact Type | Contact Material | Color | Contact Finish | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Solder | 98 | Non Specified - Dual Edge | Card Extender | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Dual | ||
EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Dual | |||
EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Dual | ||||||
EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Dual | 3.25 mm | 0.128 in | ||||
EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 3.25 mm | 0.128 " | Flush Mount Top Opening Unthreaded | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Dual | |||
EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 4-40 Threaded Insert Top Mount Opening | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Dual | |||||
EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | Flush Mount Top Opening Unthreaded | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Dual | |||
EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 3.96 mm | 0.156 in | Top Mount Opening Unthreaded | Solder | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 10 Áin | 0.25 Ám | Dual | |||
EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 4-40 Threaded Insert Top Mount Opening | Solder Wire Wrap | 98 | Non Specified - Dual Edge | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 10 Áin | 0.25 Ám | Dual | |||||
EDAC Inc. | 0.125 in | 3.18 mm | 2 | Polyester Thermoplastic | 2 | 4-40 Flush Mount Threaded Insert Top Opening | Solder Eyelet(s) | 98 | Non Specified - Dual Edge | Card Extender | Female | -40 °C | 105 ░C | 49 | Cantilever | Copper Alloy | Black | Gold | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 10 Áin | 0.25 Ám | Dual |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
396-098 Series
98 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
