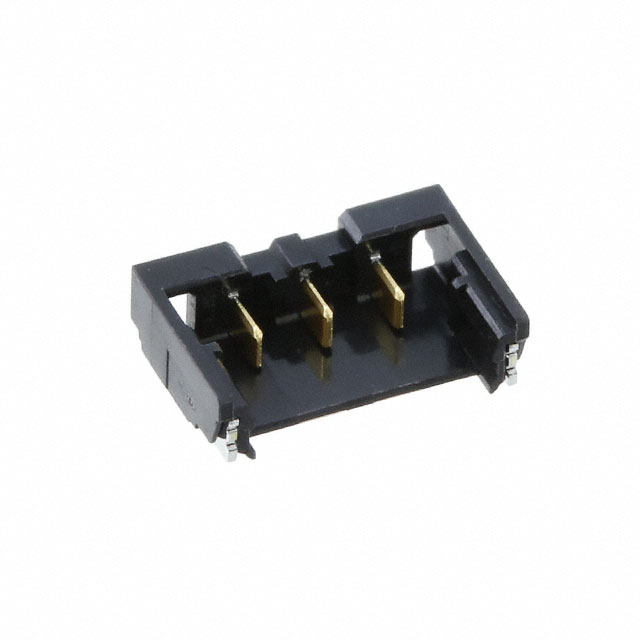

BM03B-AUHKS-GA-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 3POS
Deep-Dive with AI
Search across all available documentation for this part.
BM03B-AUHKS-GA-TB
ActiveJST Sales America Inc.
CONN HEADER SMD R/A 3POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BM03B-AUHKS-GA-TB |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Contact Shape | Rectangular |
| Contact Type | Male Blade |
| Fastening Type | Detent Lock |
| Features | Solder Retention |
| Insulation Color | Black |
| Insulation Height | 0.073 in |
| Insulation Height | 1.85 mm |
| Insulation Material | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shrouding | Shrouded - 3 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 30 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.35 | |
| 10 | $ 0.31 | |||
| 100 | $ 0.25 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.35 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.25 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.19 | |||
| Tape & Reel (TR) | 5000 | $ 0.19 | ||
Description
General part information
BM03B-AU Series
Connector Header Surface Mount, Right Angle 3 position
