SH12-5,00

Active

Altech Corporation

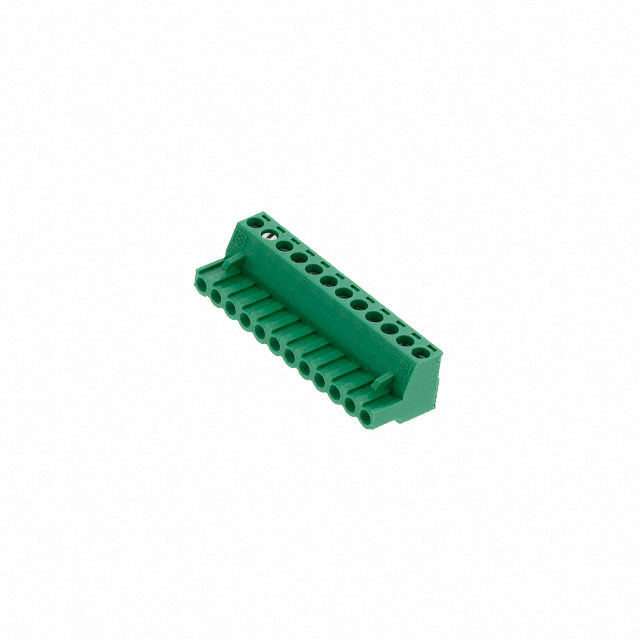

TERM BLOCK PLUG 12POS 5MM

SH12-5,00

Active

Altech Corporation

TERM BLOCK PLUG 12POS 5MM

Description Specifications Series Pricing CAD Documents

Description

General part information

SH12 Series

12 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)

Technical Specifications

Parameters and characteristics for this part

Specification	SH12-5,00

Color	Green
Contact Material	Brass
Contact Mating Finish	Nickel
Current - IEC	16 A
Current - UL	12 A
Features	Retention Latches (Non-Wire Side)
Housing Material	Nylon, Polyamide, PA
Insulation Height	0.61 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	12
Pitch	0.197 in
Plug Wire Entry Angle	180 °
Positions Per Level	12
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.5 Nm
Type	Female Sockets, Plug
Voltage - IEC	450 V
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	30 AWG
Wire Gauge or Range - AWG (Min)	14 AWG
Wire Gauge or Range - mm²	2.5 mm²
Wire Strip Length	7.5 mm

SH12 Series

Part	Color	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Current - IEC	Operating Temperature	Plug Wire Entry Angle	Voltage - UL	Voltage - IEC	Termination Style	Type	Positions Per Level	Current - UL	Features	Contact Mating Finish	Wire Gauge or Range - mm²	Number of Levels	Number of Positions	Pitch	Mounting Type	Screw Size	Insulation Height	Contact Material	Wire Strip Length	Torque - Screw	Material Flammability Rating	Housing Material	Wire Gauge or Range - mm² (Maximum)	Wire Gauge or Range - mm² (Minimum)	Operating Temperature (Min)	Operating Temperature (Max)
Altech Corporation SH12-5,00/IA	Green	30 AWG	14 AWG	16 A	105 °C	180 °	300 V	450 V	Screw - Rising Cage Clamp	Female Sockets Plug	12	12 A	Retention Latches (Non-Wire Side)	Nickel	4 mm²	1	12	0.197 in	Free Hanging (In-Line)
Altech Corporation SH12-3,81	Green	30 AWG	16 AWG	8 A	105 °C	180 °	300 V	130 V	Screw - Rising Cage Clamp	Female Sockets Plug	12	8 A		Tin	1.5 mm²	1	12	0.15 in	Free Hanging (In-Line)
Altech Corporation SH12-5,08	Green	30 AWG	14 AWG	16 A	105 °C	180 °	300 V	450 V	Screw - Rising Cage Clamp	Female Sockets Plug	12	12 A	Retention Latches (Non-Wire Side)	Nickel	4 mm²	1	12	5.08 mm	Free Hanging (In-Line)
Altech Corporation SH12-10,00	Green	30 AWG	14 AWG	16 A	105 °C	180 °	300 V	750 V	Screw - Rising Cage Clamp	Female Sockets Plug	12	12 A	Retention Latches (Non-Wire Side)	Nickel	4 mm²	1	12	0.394 in	Free Hanging (In-Line)
Altech Corporation SH12-5,00	Green	30 AWG	14 AWG	16 A		180 °	300 V	450 V	Screw - Rising Cage Clamp	Female Sockets Plug	12	12 A	Retention Latches (Non-Wire Side)	Nickel	2.5 mm²	1	12	0.197 in	Free Hanging (In-Line)	M3	0.61 in	Brass	7.5 mm	0.5 Nm	UL94 V-0	Nylon PA Polyamide
Altech Corporation SH12-10,16	Green	30 AWG	14 AWG	16 A	105 °C	180 °	300 V	750 V	Screw - Rising Cage Clamp	Female Sockets Plug	12	12 A	Retention Latches (Non-Wire Side)	Nickel	4 mm²	1	12	0.4 in	Free Hanging (In-Line)
Altech Corporation SH12-3,81-K	Green	30 AWG	14 AWG	8 A		180 °	300 V	160 V	Screw - Leaf Spring Wire Guard	Female Sockets Plug	12	11 A	Mating Flange	Nickel		1	12	0.15 in	Free Hanging (In-Line)								1.5 mm²	0.25 mm²	-30 °C	105 °C
Altech Corporation SH12-3,50	Green	30 AWG	14 AWG	8 A		180 °	300 V	160 V	Screw - Rising Cage Clamp	Female Sockets Plug	12	11 A		Nickel		1	12	0.138 in	Free Hanging (In-Line)	M2		Copper Alloy	8 mm	0.25 Nm	UL94 V-0	Nylon PA Polyamide	1.5 mm²	0.25 mm²	-30 °C	105 °C
Altech Corporation SH12-7,50
