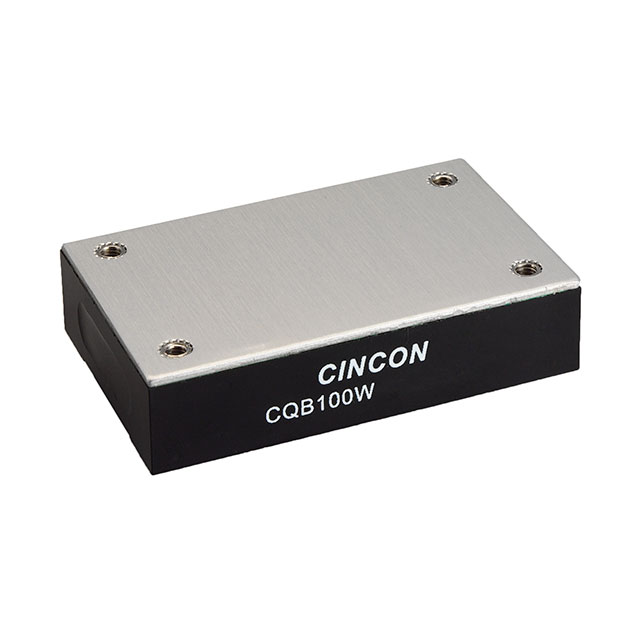

CQB100W-24S12

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 12V 100W

Deep-Dive with AI

Search across all available documentation for this part.

CQB100W-24S12

Active

Cincon Electronics Co. LTD

DC DC CONVERTER 12V 100W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CQB100W-24S12

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	8.3 A
Efficiency	86.5 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power (Watts)	100 W
Size / Dimension [x]	57.9 mm
Size / Dimension [x]	2.28 in
Size / Dimension [y]	1.45 in
Size / Dimension [y]	36.8 mm
Size / Dimension [z]	12.7 mm
Size / Dimension [z]	0.5 in
Standard Number	60950-1
Supplier Device Package	Module
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V

CQB100W Series

Part	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Features	Voltage - Input (Max) [Max]	Control Features	Power (Watts)	Current - Output (Max) [Max]	Mounting Type	Type	Applications	Number of Outputs	Voltage - Input (Min) [Min]	Package / Case	Voltage - Output 1	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Standard Number	Approval Agency
Cincon Electronics Co. LTD CQB100W-24S12N	Module	-40 °C	100 °C	86.5 %	OCP OTP OVP Remote On/Off SCP UVLO	36 V	Active Low Enable	100 W	8.3 A	Through Hole	Isolated Module	ITE (Commercial)	1	9 V	Module	12 V	1.5 kV	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	60950-1
Cincon Electronics Co. LTD CQB100W-24S15N	Module	-40 °C	100 °C	86.5 %	OCP OTP OVP Remote On/Off SCP UVLO	36 V	Active Low Enable	101 W	6.7 A	Through Hole	Isolated Module	ITE (Commercial)	1	9 V	Module	15 V	1.5 kV	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	60950-1
Cincon Electronics Co. LTD CQB100W-24S3V3N	Module	-40 °C	100 °C	86 %	OCP OTP OVP Remote On/Off SCP UVLO	36 V	Active Low Enable	99 W	30 A	Through Hole	Isolated Module	ITE (Commercial)	1	9 V	Module	3.3 V	1.5 kV	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	60950-1
Cincon Electronics Co. LTD CQB100W-48S05N	Module	-40 °C	100 °C	88 %	OCP OTP OVP Remote On/Off SCP UVLO	75 V	Active Low Enable	100 W	20 A	Through Hole	Isolated Module	ITE (Commercial)	1	18 V	Module	5 V	1.5 kV	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	60950-1
Cincon Electronics Co. LTD CQB100W-24S24	Module	-40 °C	100 °C	87 %	OCP OTP OVP Remote On/Off SCP UVLO	36 V	Active High Enable	100 W	4.17 A	Through Hole	Isolated Module	ITE (Commercial)	1	9 V	Module	24 V	1.5 kV	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	60950-1
Cincon Electronics Co. LTD CQB100W-110S15-CMFD		-40 °C	100 °C	91 %		160 V		101 W	6.7 A	Chassis Mount	Enclosed	ITE (Commercial) Railway	1	43 V		15 V	3000 V	116.8 mm	4.6 "	2.49 "	34.2 mm	63.4 mm	1.35 "	50155 60950-1 62368-1	CE
Cincon Electronics Co. LTD CQB100W-24S12	Module	-40 °C	100 °C	86.5 %	OCP OTP OVP Remote On/Off SCP UVLO	36 V	Active High Enable	100 W	8.3 A	Through Hole	Isolated Module	ITE (Commercial)	1	9 V	Module	12 V	1.5 kV	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	60950-1
Cincon Electronics Co. LTD CQB100W-24S05N	Module	-40 °C	100 °C	86.5 %	OCP OTP OVP Remote On/Off SCP UVLO	36 V	Active Low Enable	100 W	20 A	Through Hole	Isolated Module	ITE (Commercial)	1	9 V	Module	5 V	1.5 kV	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	60950-1
Cincon Electronics Co. LTD CQB100W-110S05-CMFC		-40 °C	100 °C	89 %		160 V		100 W	20 A	Chassis Mount	Open Frame	ITE (Commercial) Railway	1	43 V		5 V	3000 V	116.8 mm	4.6 "	2.4 "	32 mm	61 mm	1.26 in	50155 60950-1 62368-1	CE
Cincon Electronics Co. LTD CQB100W-24S15	Module	-40 °C	100 °C	86.5 %	OCP OTP OVP Remote On/Off SCP UVLO	36 V	Active High Enable	101 W	6.7 A	Through Hole	Isolated Module	ITE (Commercial)	1	9 V	Module	15 V	1.5 kV	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	60950-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 122.29
		5	$ 115.28
		10	$ 112.39
		25	$ 108.68
		50	$ 105.96
		100	$ 93.72

Description

General part information

CQB100W Series

Isolated Module DC DC Converter 1 Output 12V 8.3A 9V - 36V Input
