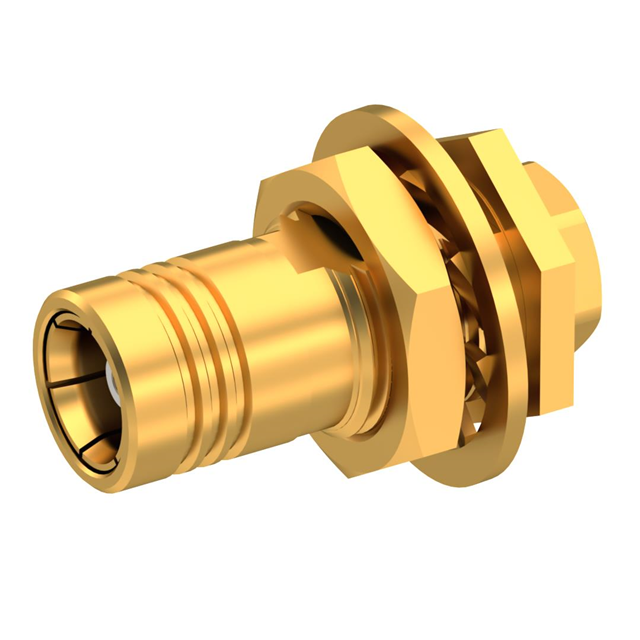

R116003900

Active

Radiall USA, Inc.

SMB / STRAIGHT PLUG BULKHEAD REA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMB / STRAIGHT PLUG BULKHEAD REA

Technical Specifications

Parameters and characteristics for this part

Specification	R116003900

Body Finish	Gold
Body Material	Brass
Cable Group	196
Cable Group	RG-178
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMB
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	4 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp

Part	Cable Group	Cable Group	Body Finish	Center Contact Plating	Contact Termination	Housing Color	Dielectric Material	Number of Ports	Impedance	Fastening Type	Connector Type	Connector Style	Frequency - Max [Max]	Shield Termination	Body Material	Mounting Feature	Center Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles
Radiall USA, Inc. R116003900	196	RG-178	Gold	Gold	Solder	Gold	Polytetrafluoroethylene (PTFE)	1	50 Ohms	Snap-On	Female Socket Plug	SMB	4 GHz	Clamp	Brass	Bulkhead - Front Side Nut	Beryllium Copper	-65 ░C	165 °C	500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 45.76

General part information

SMB Connector Plug, Female Socket 50 Ohms Panel Mount Solder
