Specification	1-1986375-0

Color	Green
Contact Material	Phosphor Bronze
Contact Mating Finish	Tin
Current - UL	11 A
Features	Side Stacking
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.756 in
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	10
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Pitch	0.15 in
Plug Wire Entry Angle	270 °
Positions Per Level	10
Screw Size	M2
Termination Style	Screw - Rising Cage Clamp
Type	Female Sockets, Plug
Voltage - UL	300 V
Wire Gauge or Range - AWG (Max)	30 AWG
Wire Gauge or Range - AWG (Min)	14 AWG
Wire Gauge or Range - mm² (Maximum)	2 mm²
Wire Gauge or Range - mm² (Minimum)	0.05 mm²

1986375 Series

Part	Number of Levels	Operating Temperature (Min)	Operating Temperature (Max)	Positions Per Level	Mounting Type	Current - UL	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Contact Mating Finish	Termination Style	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Features	Type	Color	Pitch	Voltage - UL	Number of Positions	Plug Wire Entry Angle	Insulation Height	Screw Size	Housing Material	Contact Material	Material Flammability Rating
TE Connectivity AMP Connectors 1-1986375-0	1	-40 °C	110 °C	10	Free Hanging (In-Line)	11 A	30 AWG	14 AWG	Tin	Screw - Rising Cage Clamp	0.05 mm²	2 mm²	Side Stacking	Female Sockets Plug	Green	0.15 in	300 V	10	270 °	0.756 in	M2	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0
TE Connectivity AMP Connectors 1-1986375-2	1	-40 °C	110 °C	12	Free Hanging (In-Line)	11 A	30 AWG	14 AWG	Tin	Screw - Rising Cage Clamp	0.05 mm²	2 mm²	Side Stacking	Female Sockets Plug	Green	0.15 in	300 V	12	270 °	0.756 in	M2	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0

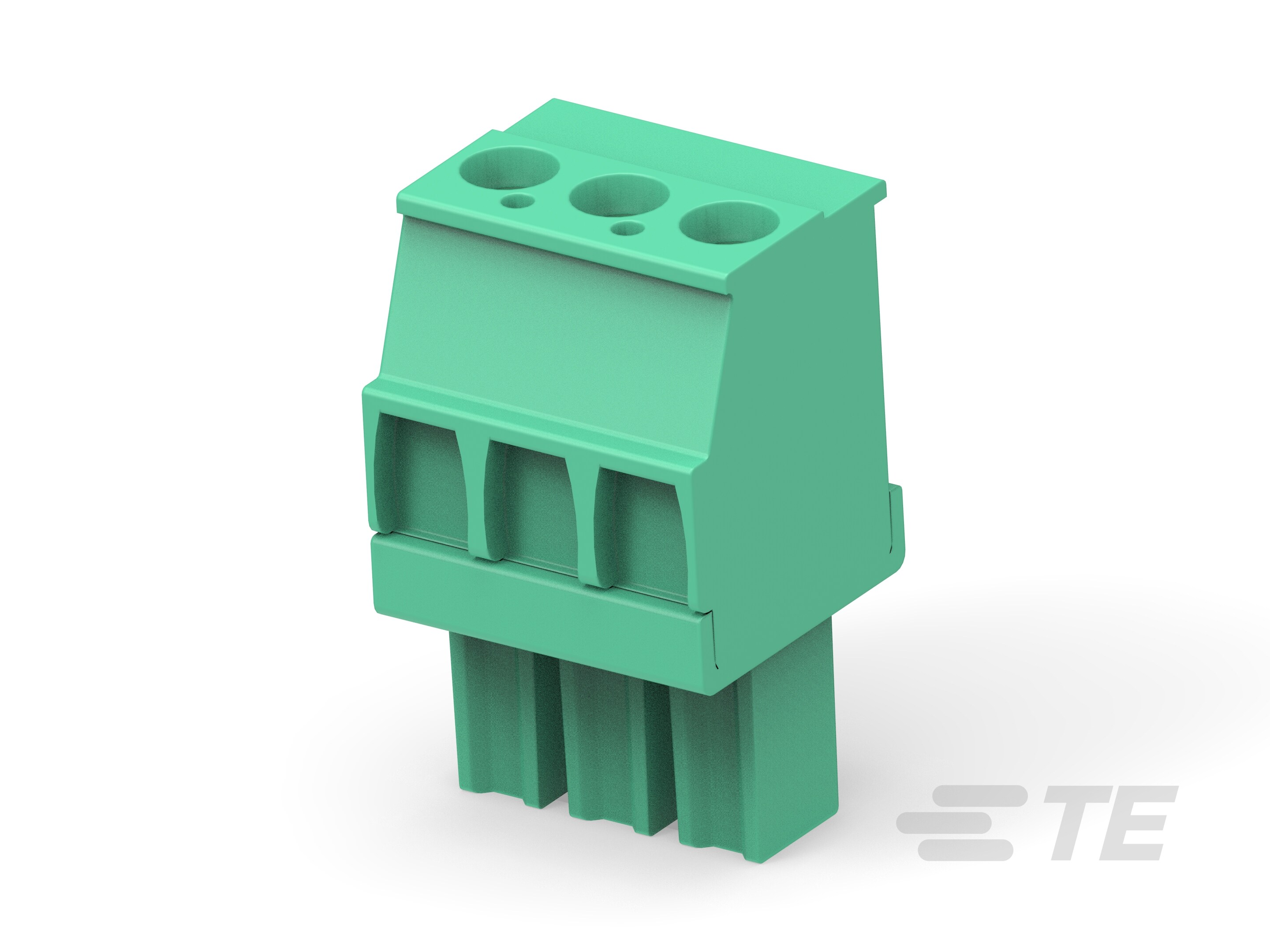

TE Connectivity AMP Connectors 1986375-3	1	-40 °C	110 °C	3	Free Hanging (In-Line)	11 A	30 AWG	14 AWG	Tin	Screw - Rising Cage Clamp	0.05 mm²	2 mm²	Side Stacking	Female Sockets Plug	Green	0.15 in	300 V	3	270 °	0.756 in	M2	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0

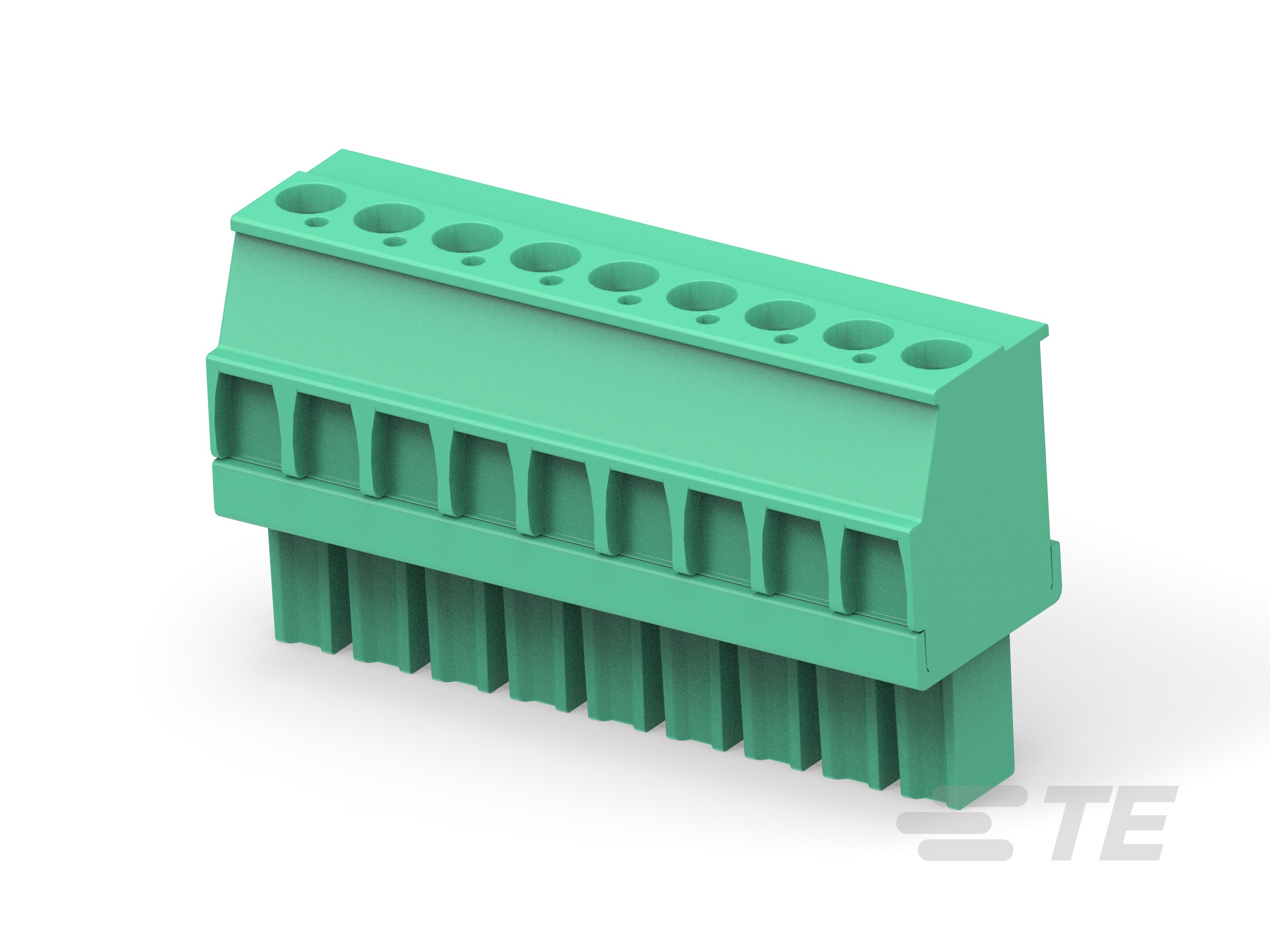

TE Connectivity AMP Connectors 1986375-9	1	-40 °C	110 °C	9	Free Hanging (In-Line)	11 A	30 AWG	14 AWG	Tin	Screw - Rising Cage Clamp	0.05 mm²	2 mm²	Side Stacking	Female Sockets Plug	Green	0.15 in	300 V	9	270 °	0.756 in	M2	Nylon 6/6 PA66 Polyamide	Phosphor Bronze	UL94 V-0
