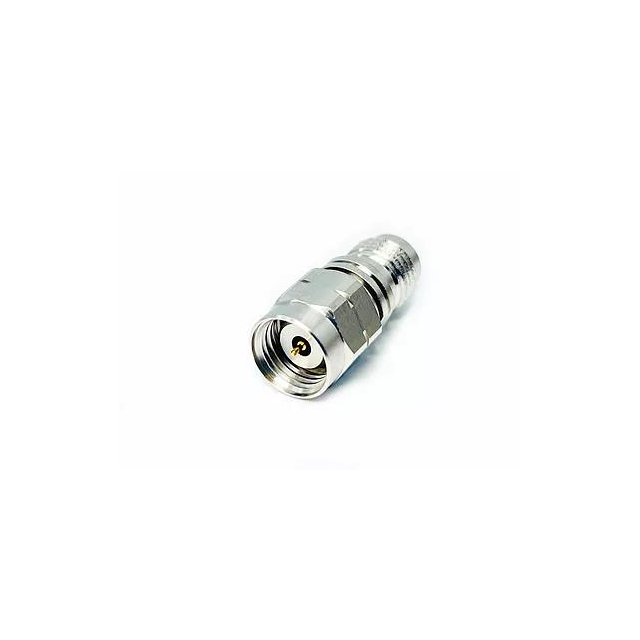

AD01M01FS1

Active

WITHWAVE CO LTD

COAX ADAPT 1.85MM TO 1.85MM

Search across all available documentation for this part.

Active

WITHWAVE CO LTD

COAX ADAPT 1.85MM TO 1.85MM

Technical Specifications

Parameters and characteristics for this part

Specification	AD01M01FS1

Adapter Series [Max]	1.85 mm
Adapter Series [Min]	1.85 mm
Adapter Type	Plug to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Male to Female
Conversion Type	Between Series
Convert From (Adapter End)	1.85 mm
Convert From (Adapter End)	Plug, Male Pin
Convert To (Adapter End)	Female Socket, 1.85mm Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	67 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Style	Straight

COAX ADAPT 1.85MM TO 1.85MM

Part	Center Gender	Style	Center Contact Material	Convert To (Adapter End)	Impedance	Dielectric Material	Adapter Type	Mounting Type	Adapter Series [Min]	Adapter Series [Max]	Convert From (Adapter End)	Convert From (Adapter End)	Conversion Type	Frequency - Max [Max]	Center Contact Plating	Body Material
WITHWAVE CO LTD AD01M01FS1	Male to Female	Straight	Beryllium Copper	1.85mm Jack, Female Socket	50 Ohms	Polytetrafluoroethylene (PTFE)	Plug to Jack	Free Hanging (In-Line)	1.85 mm	1.85 mm	1.85 mm	Plug, Male Pin	Between Series	67 GHz	Gold	Stainless Steel

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 1.85mm Plug, Male Pin To 1.85mm Jack, Female Socket 50 Ohms
