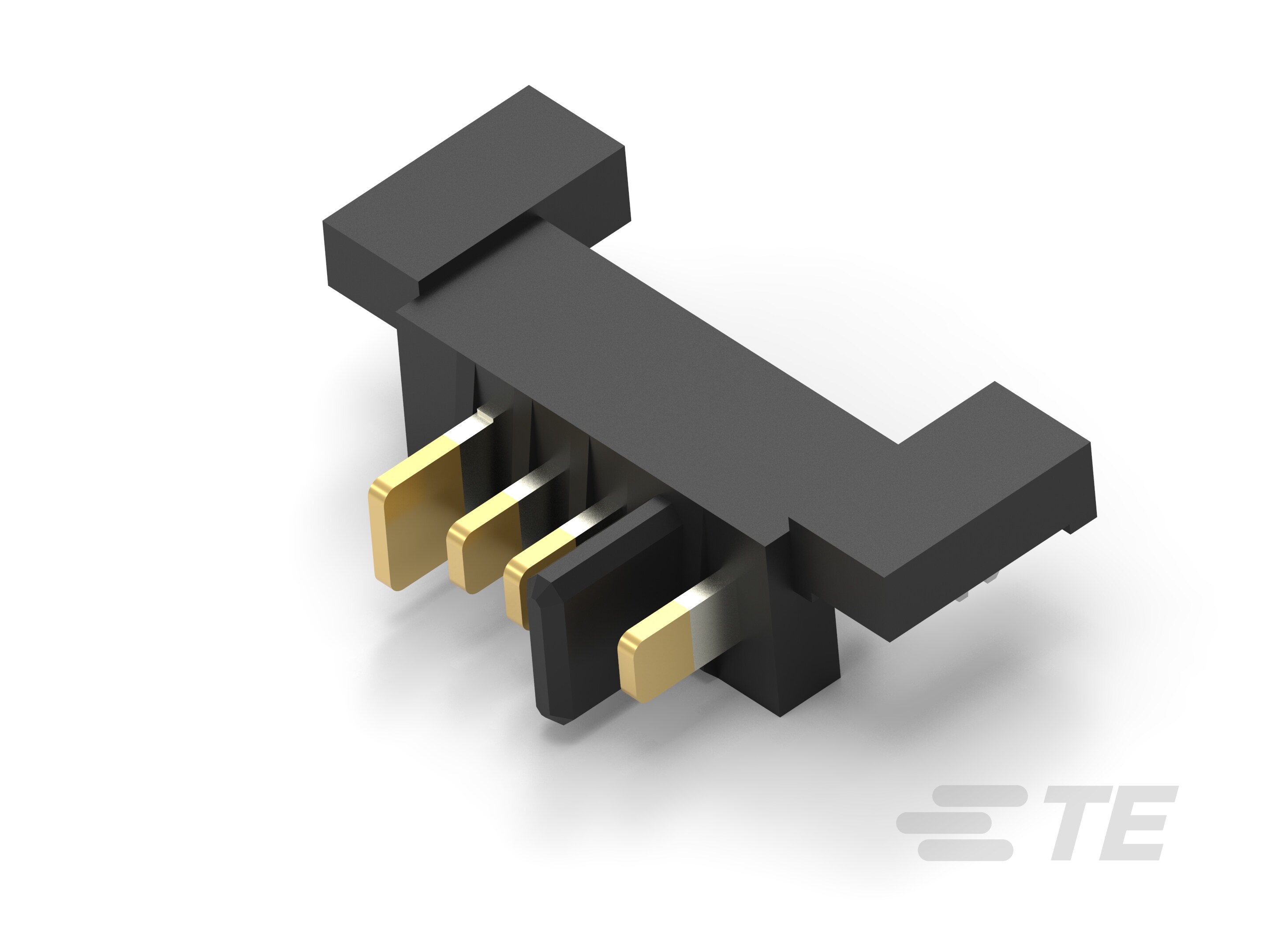

Specification	6123978-1

Color	Black
Connector Style	Battery
Connector Type	Plug, Male Blades
Contact Finish	Palladium-Nickel
Contact Material	Copper Alloy
Current Rating	6 A
Fastening Type	Push-Pull
Features	Flange, Board Lock, Board Guide
Material - Insulation	Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	4
Number of Rows	1
Pitch	0.098 in
Termination	Solder

6123978 Series

Part	Material - Insulation	Contact Material	Current Rating	Fastening Type	Contact Finish	Features	Termination	Number of Positions	Number of Rows	Connector Style	Mounting Type	Color	Pitch	Connector Type
TE Connectivity AMP Connectors 6123978-1	Thermoplastic	Copper Alloy	6 A	Push-Pull	Palladium-Nickel	Board Guide Board Lock Flange	Solder	4	1	Battery	Right Angle Through Hole	Black	0.098 in	Male Blades Plug
