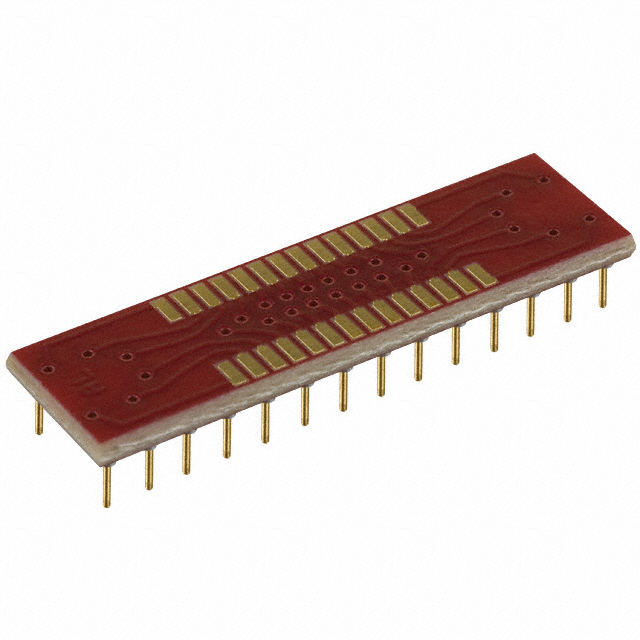

28-350002-11-RC

Active

Aries Electronics

SOCKET ADAPTER SOIC TO 28DIP 0.3

Search across all available documentation for this part.

Active

Aries Electronics

SOCKET ADAPTER SOIC TO 28DIP 0.3

Technical Specifications

Parameters and characteristics for this part

Specification	28-350002-11-RC

Board Material	FR4 Epoxy Glass
Contact Finish - Post	Gold
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Material - Post [custom]	Brass
Convert From (Adapter End)	SOIC
Convert To (Adapter End)	0.3 in
Convert To (Adapter End)	DIP
Convert To (Adapter End)	7.62 mm
Mounting Type	Through Hole
Number of Pins	28
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	3.18 mm
Termination Post Length	0.125 in

Part	Contact Material - Post [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Post	Pitch - Post	Contact Finish - Post	Termination	Mounting Type	Number of Pins	Board Material	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Termination Post Length	Termination Post Length	Convert From (Adapter End)	Pitch - Mating	Pitch - Mating	Material	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Proto Board Type	Number of Positions	Package Accepted	Board Thickness	Board Thickness	Board Thickness	Pitch [x]	Pitch [x]
Aries Electronics 28-350002-11-RC	Brass	10 çin	0.25 çm	2.54 mm	0.1 in	Gold	Solder	Through Hole	28	FR4 Epoxy Glass	0.3 in	DIP	7.62 mm	3.18 mm	0.125 in	SOIC	0.05 in	1.27 mm
Aries Electronics 28-350002-10																			FR4 Epoxy Glass	10.16 mm	2.8 in	71.12 mm	0.4 in	SMD to DIP	28	SOIC	0.062 in	0.0625 in	1.57 mm	0.05 in	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	154	$ 23.21
