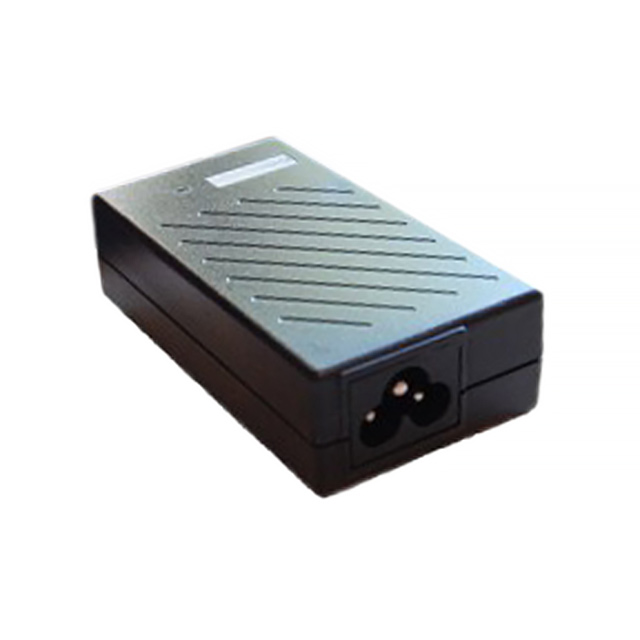

MWA030024A-10A

Obsolete

Inventus Power

AC/DC DESKTOP ADAPTER 24V 30W

Search across all available documentation for this part.

Obsolete

Inventus Power

AC/DC DESKTOP ADAPTER 24V 30W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

24V 30 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	MWA030024A-10A	MWA030024 Series

Applications	Medical	Medical
Approval Agency	CE, GS, CB	cTUVus, CE, GS, CB
Cord Length	1.22 m	1.22 m
Cord Length	48 in	48 in
Current - Output (Max) [Max]	1.25 A	1.25 A
Efficiency	Level V	Level V
Form	Desktop (Class I)	Desktop (Class II), Desktop (Class I)
Input Connector	IEC 320-C6	IEC 320-C8, IEC 320-C6
Input Type	Cord	Cord
No Load Power Consumption	300 mW	300 mW
Operating Temperature [Max]	60 °C	60 °C
Operating Temperature [Min]	0 °C	0 °C
Output Connector	Barrel Plug	Barrel Plug
Output Connector [diameter]	5.5 mm, 2.5 mm	2.5 - 5.5 mm
Output Connector [x]	9.5 mm	9.5 mm
Polarization	Positive Center	Positive Center
Power (Watts)	30 W	30 W
Region Utilized	International	International
Size / Dimension [x]	3.53 "	3.53 "
Size / Dimension [x]	89.6 mm	89.6 - 89.7 mm
Size / Dimension [y]	48.8 mm	48.8 mm
Size / Dimension [y]	1.92 in	1.92 in
Size / Dimension [z]	0.99 "	0.99 "
Size / Dimension [z]	25.2 mm	25.1 - 25.2 mm
Voltage - Output	24 V	24 V
Weight	136.08 g	136.08 g
Weight	0.3 lb	0.3 lb

AC/DC DESKTOP ADAPTER 24V 30W

Part	Approval Agency	Polarization	Voltage - Output	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Input Connector	Current - Output (Max) [Max]	Region Utilized	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Form	No Load Power Consumption	Applications	Input Type	Cord Length	Cord Length	Output Connector [diameter]	Output Connector [x]	Output Connector	Weight	Weight
Inventus Power MWA030024B-10A	CE, cTUVus	Positive Center	24 V	1.92 in	25.1 mm	89.7 mm	48.8 mm	3.53 "	0.99 "	30 W	IEC 320-C8	1.25 A	International	60 °C	0 °C	Level V	Desktop (Class II)	300 mW	Medical	Cord	1.22 m	48 in
Inventus Power MWA030024A-10A	CB, CE, GS	Positive Center	24 V	1.92 in	25.2 mm	89.6 mm	48.8 mm	3.53 "	0.99 "	30 W	IEC 320-C6	1.25 A	International	60 °C	0 °C	Level V	Desktop (Class I)	300 mW	Medical	Cord	1.22 m	48 in	2.5 mm, 5.5 mm	9.5 mm	Barrel Plug	136.08 g	0.3 lb
