MPTC-02-16-02-6.30-03-L-V
ActiveSamtec Inc.

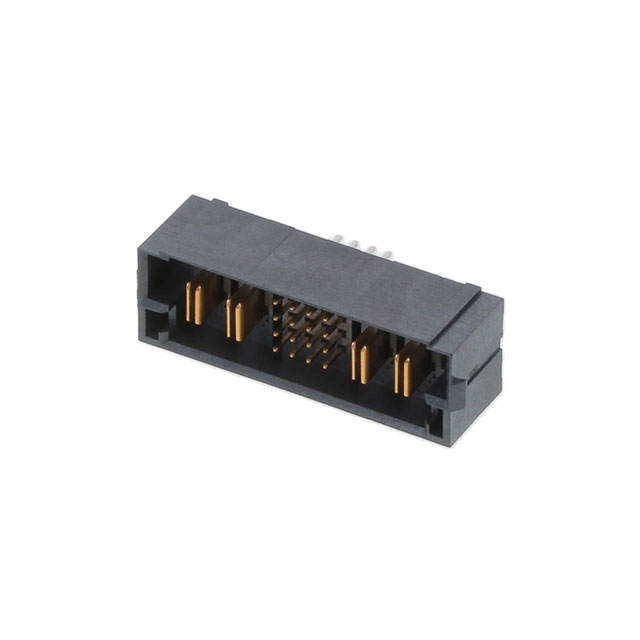

RECTANGULAR POWER CONNECTOR, 16 SIGNAL+4 POWER, 20 CONTACTS, POWER STRIP 30 MPTC SERIES, PCB MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
MPTC-02-16-02-6.30-03-L-V
ActiveSamtec Inc.
RECTANGULAR POWER CONNECTOR, 16 SIGNAL+4 POWER, 20 CONTACTS, POWER STRIP 30 MPTC SERIES, PCB MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPTC-02-16-02-6.30-03-L-V |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm |
| Contact Length - Post | 0.107 " |
| Contact Length - Post | 2.71 mm |
| Contact Material | Copper Alloy, Phosphor Bronze |
| Contact Shape | Square, Rectangular |
| Contact Type | Male Pin, Male Blade |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Insulation Color | Black |
| Insulation Height | 11.38 mm |
| Insulation Height | 0.448 in |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions [custom] | 16 |
| Number of Positions [custom] | 4 |
| Number of Positions Loaded | All |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Termination | Solder |
MPTC-02 Series
Heavy Duty Power Connectors 5.00 mm PowerStrip/30 A Signal/Power Combo Terminal Strip
| Part | Contact Type | Contact Finish - Post | Features | Insulation Height | Insulation Height | Number of Positions Loaded | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Shrouding | Contact Length - Post | Contact Length - Post | Material Flammability Rating | Mounting Type | Fastening Type | Contact Material | Number of Positions [custom] | Number of Positions [custom] | Connector Type | Contact Shape | Insulation Color | Contact Finish - Mating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Positions | Number of Positions [custom] | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | Male Blade Male Pin | Tin | Mounting Flange | 12.44 mm | 0.49 in | All | Solder | -55 °C | 125 °C | 0.079 in | 2 mm | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 0.107 " | 2.71 mm | UL94 V-0 | Through Hole Right Angle | Locking Ramp | Copper Alloy Phosphor Bronze | 16 | 4 | Header | Rectangular Square | Black | ||||||
Samtec Inc. | Male Blade Male Pin | Tin | Mounting Flange | 12.44 mm | 0.49 in | All | Solder | -55 °C | 125 °C | 0.079 in | 2 mm | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 0.107 " | 2.71 mm | UL94 V-0 | Through Hole Right Angle | Locking Ramp | Copper Alloy Phosphor Bronze | 24 | 4 | Header | Rectangular Square | Black | ||||||
Samtec Inc. | Male Blade Male Pin | Tin | Board Guide | 11.38 mm | 0.448 in | All | Solder | -55 °C | 125 °C | 0.079 in | 2 mm | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 0.107 " | 2.71 mm | UL94 V-0 | Through Hole | Locking Ramp | Copper Alloy Phosphor Bronze | 16 | 4 | Header | Rectangular Square | Black | Gold | 10 çin | 0.25 çm | |||
Samtec Inc. | Male Blade Male Pin | Tin | Board Guide | 11.38 mm | 0.448 in | All | Solder | -55 °C | 125 °C | 0.079 in | 2 mm | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 0.107 " | 2.71 mm | UL94 V-0 | Through Hole | Locking Ramp | Copper Alloy Phosphor Bronze | 24 | 4 | Header | Rectangular Square | Black | ||||||
Samtec Inc. | Male Blade Male Pin | Tin | 12.44 mm | 0.49 in | All | Solder | -55 °C | 125 °C | 0.079 in | 2 mm | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 0.107 " | 2.71 mm | UL94 V-0 | Through Hole Right Angle | Locking Ramp | Copper Alloy Phosphor Bronze | Header | Rectangular Square | Black | 4 80 84 | ||||||||
Samtec Inc. | Male Blade Male Pin | Tin | 12.44 mm | 0.49 in | All | Solder | -55 °C | 125 °C | 0.079 in | 2 mm | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 0.107 " | 2.71 mm | UL94 V-0 | Through Hole Right Angle | Locking Ramp | Copper Alloy Phosphor Bronze | 24 | 4 | Header | Rectangular Square | Black | |||||||
Samtec Inc. | Male Blade Male Pin | Tin | Board Guide | 11.38 mm | 0.448 in | All | Solder | -55 °C | 125 °C | 0.079 in | 2 mm | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 0.107 " | 2.71 mm | UL94 V-0 | Through Hole | Locking Ramp | Copper Alloy Phosphor Bronze | 16 | 4 | Header | Rectangular Square | Black | Gold | 10 çin | 0.25 çm | |||
Samtec Inc. | Male Blade Male Pin | Tin | 11.38 mm | 0.448 in | All | Solder | -55 °C | 125 °C | 0.079 in | 2 mm | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 0.107 " | 2.71 mm | UL94 V-0 | Through Hole | Locking Ramp | Copper Alloy Phosphor Bronze | Header | Rectangular Square | Black | Gold | 10 çin | 0.25 çm | 52 | 4 | ||||
Samtec Inc. | Male Blade Male Pin | Tin | 12.44 mm | 0.49 in | All | Solder | -55 °C | 125 °C | 0.079 in | 2 mm | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 0.107 " | 2.71 mm | UL94 V-0 | Through Hole Right Angle | Locking Ramp | Copper Alloy Phosphor Bronze | 24 | 4 | Header | Rectangular Square | Black | Gold | 10 çin | 0.25 çm | ||||
Samtec Inc. | Male Blade Male Pin | Tin | 11.38 mm | 0.448 in | All | Solder | -55 °C | 125 °C | 0.079 in | 2 mm | Liquid Crystal Polymer (LCP) | Shrouded - 4 Wall | 0.107 " | 2.71 mm | UL94 V-0 | Through Hole | Locking Ramp | Copper Alloy Phosphor Bronze | 24 | 4 | Header | Rectangular Square | Black |
