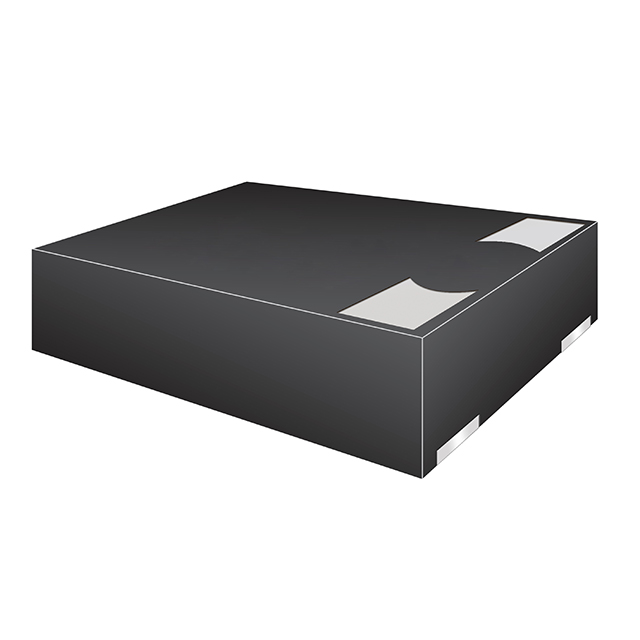

T528I336M010ATE200

Active

KEMET

CAPACITOR, TANTALUM, SOLID POLYMER, POLARIZED, 10V, 33UF, SURFACE MOUNT, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Search across all available documentation for this part.

Active

KEMET

CAPACITOR, TANTALUM, SOLID POLYMER, POLARIZED, 10V, 33UF, SURFACE MOUNT, 1206, CHIP, HALOGEN FREE AND ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	T528I336M010ATE200

Capacitance	33 ÁF
ESR (Equivalent Series Resistance)	200 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Manufacturer Size Code	I
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1206 (3216 Metric)
Size / Dimension [x]	0.126 "
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	10 V

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Manufacturer Size Code	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Type	Capacitance	Tolerance	Mounting Type	Package / Case	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features
KEMET T528I336M010ATE200	0.063 in	1.6 mm	0.126 "	3.2 mm	I	105 ░C	-55 °C	10 V	Molded	33 ÁF	20 %	Surface Mount	1206 (3216 Metric)	200 mOhm	0.039 "	1 mm	General Purpose

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

33 µF Molded Tantalum Polymer Capacitor 10 V 1206 (3216 Metric) 200mOhm @ 100kHz
