General part information

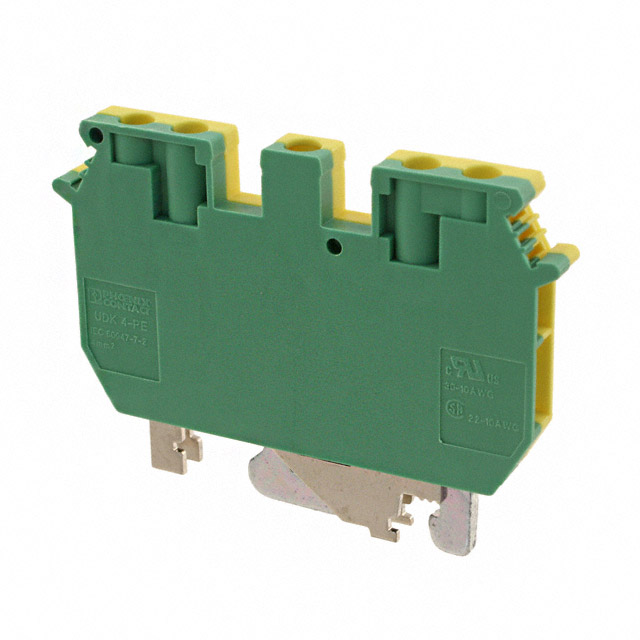

DIN Rail Terminal Blocks UDK 4-PE
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 2775184 | UDK Series |
|---|---|---|
| Color | Green, Yellow | Gray, Green, Yellow |
| Material - Insulation | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Material Flammability Rating | UL94 V-2 | UL94 V-2 |
| Number of Levels | 1 | 1 |
| Number of Positions | 4 | 4 |
| Stripping Length | 8 mm | 8 mm |
| Terminal - Width [y] | 6.2 mm | 6.2 mm |
| Termination Style | Screw | Screw |
| Type | Ground, Earth | Feed Through, Ground, Earth |
| Voltage - IEC | - | 630 V |
| Wire Gauge or Range - AWG [Max] | 22 AWG | 22 AWG |
| Wire Gauge or Range - AWG [Min] | 10 AWG | 10 AWG |
| Wire Gauge or Range - mm² [Max] | 6 mm² | 6 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² | 0.2 mm² |
DIN Rail Terminal Blocks UDK 4-PE
| Part | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Voltage - IEC | Terminal - Width [y] | Number of Positions | Number of Levels | Termination Style | Type | Material Flammability Rating | Color | Stripping Length | Material - Insulation | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 2775207 | 0.2 mm² | 6 mm² | 630 V | 6.2 mm | 4 | 1 | Screw | Feed Through | UL94 V-2 | Gray | 8 mm | Nylon, Polyamide (PA) | ||
Phoenix Contact 2775184 | 0.2 mm² | 6 mm² | 6.2 mm | 4 | 1 | Screw | Ground, Earth | UL94 V-2 | Green, Yellow | 8 mm | Nylon, Polyamide (PA) | 22 AWG | 10 AWG |
