MMBT5401-G

Active

Comchip Technology

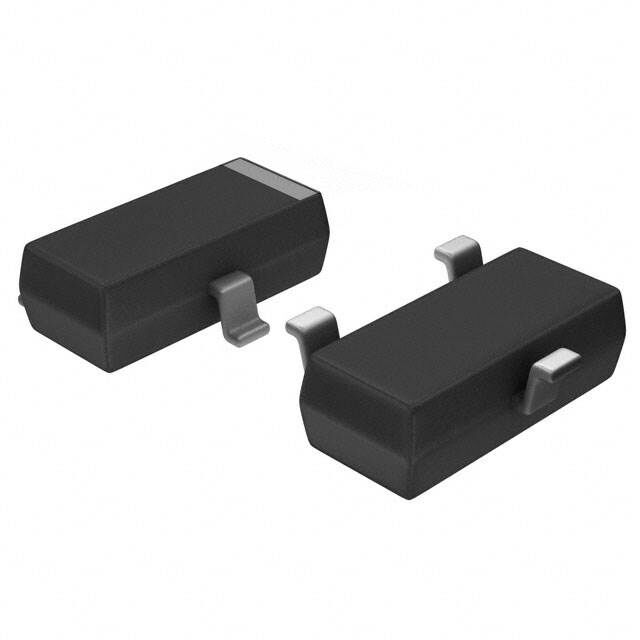

TRANS PNP 150V 0.6A SOT-23-3

Search across all available documentation for this part.

Active

Comchip Technology

TRANS PNP 150V 0.6A SOT-23-3

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MMBT5401-G	MMBT5401 Series

Current - Collector (Ic) (Max) [Max]	600 mA	600 mA
Current - Collector Cutoff (Max) [Max]	100 nA	50 - 100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100	100
Frequency - Transition	100 MHz	100 - 300 MHz
Mounting Type	Surface Mount	Surface Mount
Operating Temperature	-	150 °C
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	SOT-23-3, TO-236-3, SC-59	SOT-23-3, TO-236-3, SC-59
Supplier Device Package	SOT-23-3	SOT-23-3
Transistor Type	PNP	PNP
Vce Saturation (Max) @ Ib, Ic	500 mV	500 mV
Voltage - Collector Emitter Breakdown (Max)	150 V	150 V
Voltage - Collector Emitter Breakdown (Max)	-	160 V

TRANS PNP 150V 0.6A SOT-23-3

Part	Supplier Device Package	Frequency - Transition	Package / Case	Transistor Type	Current - Collector Cutoff (Max) [Max]	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Collector Emitter Breakdown (Max)	Operating Temperature	Voltage - Collector Emitter Breakdown (Max) [Max]
Comchip Technology MMBT5401-G	SOT-23-3	100 MHz	SC-59, SOT-23-3, TO-236-3	PNP	100 nA	Surface Mount	100	600 mA	500 mV	-55 °C	150 °C	150 V
Comchip Technology MMBT5401-HF	SOT-23-3	300 MHz	SC-59, SOT-23-3, TO-236-3	PNP	50 nA	Surface Mount	100	600 mA	500 mV				150 °C	160 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor PNP 150 V 600 mA 100MHz 300 mW Surface Mount SOT-23-3
