1701-0-15-84-30-14-10-0
ActiveMill-Max Manufacturing Corp.
CONN PIN RCPT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1701-0-15-84-30-14-10-0 |
|---|---|
| Accepts Pin Diameter [Max] | 0.025 " |
| Accepts Pin Diameter [Max] | 0.64 mm |
| Accepts Pin Diameter [Min] | 0.015 " |
| Accepts Pin Diameter [Min] | 0.38 mm |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Beryllium Copper |
| Flange Diameter [diameter] | 1.8 mm |
| Flange Diameter [diameter] | 0.071 in |
| Mounting Hole Diameter [diameter] | 0.057 " |
| Mounting Hole Diameter [diameter] | 1.45 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Tail Type | No Tail |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.09 | |
| 10 | $ 0.92 | |||
| 25 | $ 0.89 | |||
| 50 | $ 0.87 | |||
| 100 | $ 0.83 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.68 | |||
| 1000 | $ 0.60 | |||
| 3000 | $ 0.55 | |||
Description
General part information
1701-0 Series

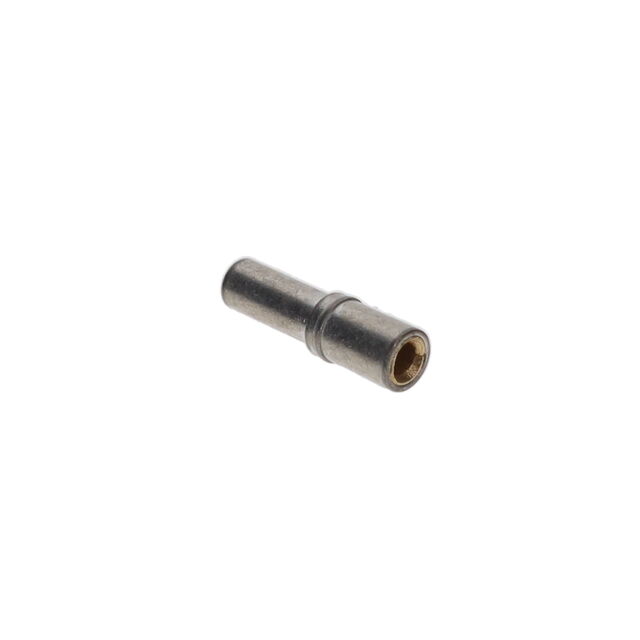

Pin Receptacle Connector 0.015" ~ 0.025" (0.38mm ~ 0.64mm) No Tail Press-Fit
