9401-1083-109
ActiveRadiall USA, Inc.
SMA M STR NA SD
Deep-Dive with AI
Search across all available documentation for this part.
9401-1083-109
ActiveRadiall USA, Inc.
SMA M STR NA SD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9401-1083-109 |
|---|---|
| Body Finish | Gold |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | SMA |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 18 GHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
9401-1083 Series
| Part | Connector Type | Number of Ports | Body Material | Connector Style | Body Finish | Frequency - Max [Max] | Voltage Rating | Center Contact Plating | Mounting Type | Shield Termination | Operating Temperature [Min] | Operating Temperature [Max] | Housing Color | Center Contact Material | Impedance | Cable Group | Mating Cycles | Contact Termination | Dielectric Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Radiall USA, Inc. | Male Pin Plug | 1 | Stainless Steel | SMA | Gold | 18 GHz | 350 V | Gold | Free Hanging (In-Line) | Solder | -65 ░C | 105 ░C | Gold | Beryllium Copper | 50 Ohms | RG-405 (.085" Semi Rigid) | 500 | Solder | Polytetrafluoroethylene (PTFE) |
Radiall USA, Inc. | Male Pin Plug | 1 | Stainless Steel | SMA | Gold | 18 GHz | 500 V | Gold | Free Hanging (In-Line) | Solder | -65 ░C | 105 ░C | Gold | Beryllium Copper | 50 Ohms | 500 | Solder | Polytetrafluoroethylene (PTFE) | |
Radiall USA, Inc. | Male Pin Plug | 1 | Stainless Steel | SMA | Gold | 18 GHz | 350 V | Gold | Free Hanging (In-Line) | Solder | -65 ░C | 105 ░C | Gold | Beryllium Copper | 50 Ohms | RG-405 (.085" Semi Rigid) | 500 | Solder | Polytetrafluoroethylene (PTFE) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.05 | |
| 10 | $ 15.64 | |||
| 25 | $ 14.83 | |||
| 50 | $ 14.61 | |||
| 100 | $ 12.89 | |||
| 250 | $ 12.03 | |||
| 500 | $ 11.78 | |||
Description
General part information
9401-1083 Series

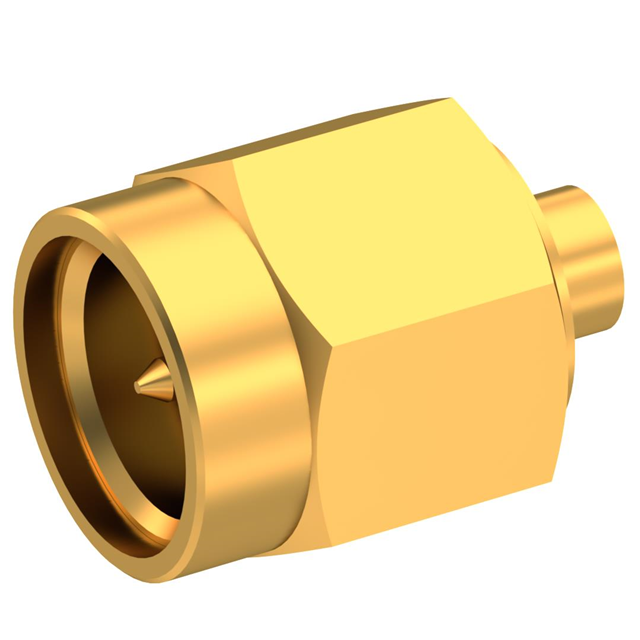

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
