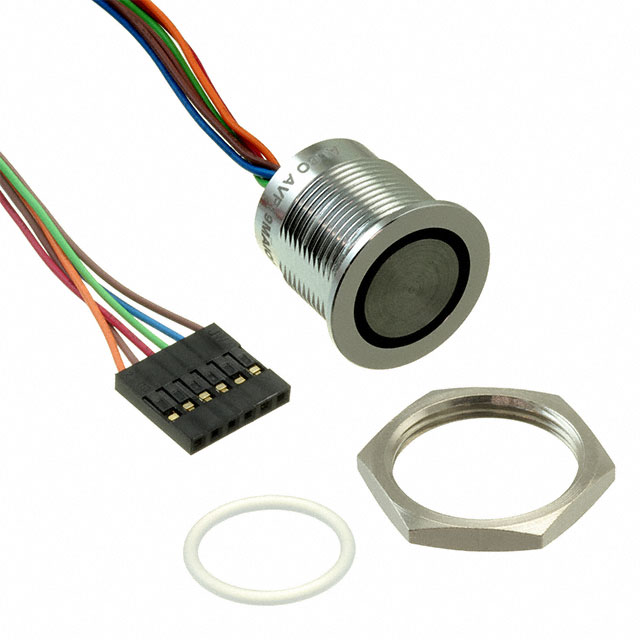

AVP19MAIOCE0DT5A04

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST-NO 1A 24V

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

SWITCH PUSHBUTTON SPST-NO 1A 24V

Technical Specifications

Parameters and characteristics for this part

Specification	AVP19MAIOCE0DT5A04

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Electrical Life	50000000 Cycles
Illumination Type, Color	Red, LED, Blue, Green
Ingress Protection	IP68 - Dust Tight, Waterproof
Mechanical Life	50000000 Cycles
Mounting Type	Panel Mount, Front
Panel Cutout Dimensions [diameter]	19.2 mm
Switch Function	Off-Mom
Type	Illuminated, Piezo, Anti-Vandal
Voltage Rating - AC	24 V
Voltage Rating - DC	24 V

Part	Voltage Rating - AC	Circuit	Electrical Life	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Switch Function	Illumination Type, Color	Actuator Marking	Ingress Protection	Voltage Rating - DC	Type	Mechanical Life	Actuator Type	Mounting Type
TE Connectivity Raychem Cable Protection AVP19MAIOCE0DT5A04	24 V	SPST-NO	50000000 Cycles	Silver	19.2 mm	Off-Mom	Blue Green LED Red	No Marking	IP68 - Dust Tight Waterproof	24 V	Anti-Vandal Illuminated Piezo	50000000 Cycles	Button Flush Round	Panel Mount Front
TE Connectivity Raychem Cable Protection AVP19MS04C000T5A04	24 V	SPST-NO	50000000 Cycles	Silver	19.2 mm	Off-Mom		No Marking	IP68 - Dust Tight Waterproof	24 V	Anti-Vandal Piezo	50000000 Cycles	Button Flush Round	Panel Mount Front

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch SPST-NO Piezo, Anti-Vandal, Illuminated Panel Mount, Front
