3.14001.0130000

Obsolete

RAFI USA

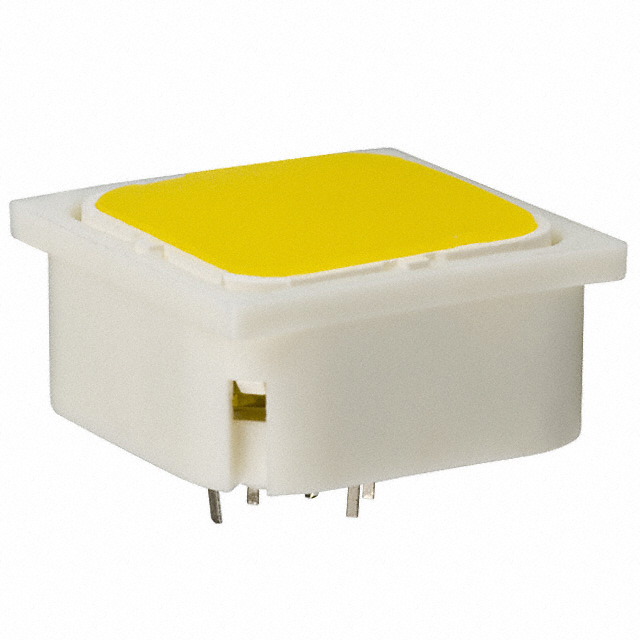

SWITCH TACTILE SPST-NO 0.1A 42V

Search across all available documentation for this part.

Obsolete

RAFI USA

SWITCH TACTILE SPST-NO 0.1A 42V

Technical Specifications

Parameters and characteristics for this part

Specification	3.14001.0130000

Actuator Height off PCB, Vertical	9.7 mm
Actuator Orientation	Top Actuated
Actuator Type	Square Button
Circuit	SPST-NO
Contact Rating @ Voltage	42 VAC/DC, 0.1 A
Illumination	Illuminated
Illumination Type, Color	LED, Yellow
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Force [Max]	306 gf
Operating Force [Min]	204 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Outline [x]	19.05 mm
Outline [y]	19.05 mm
Switch Function	Off-Mom
Switch Travel	0.5 mm
Termination Style	PC Pin

Part	Switch Function	Termination Style	Actuator Height off PCB, Vertical	Actuator Type	Circuit	Contact Rating @ Voltage	Outline [x]	Outline [y]	Actuator Orientation	Switch Travel	Illumination	Mounting Type	Illumination Type, Color	Mechanical Life	Operating Force [Min]	Operating Force [Max]	Operating Temperature [Max]	Operating Temperature [Min]
RAFI USA 3.14001.0130000	Off-Mom	PC Pin	9.7 mm	Square Button	SPST-NO	0.1 A 42 VAC/DC	19.05 mm	19.05 mm	Top Actuated	0.5 mm	Illuminated	Through Hole	LED Yellow	1000000 Cycles	204 gf	306 gf	70 °C	-25 °C
