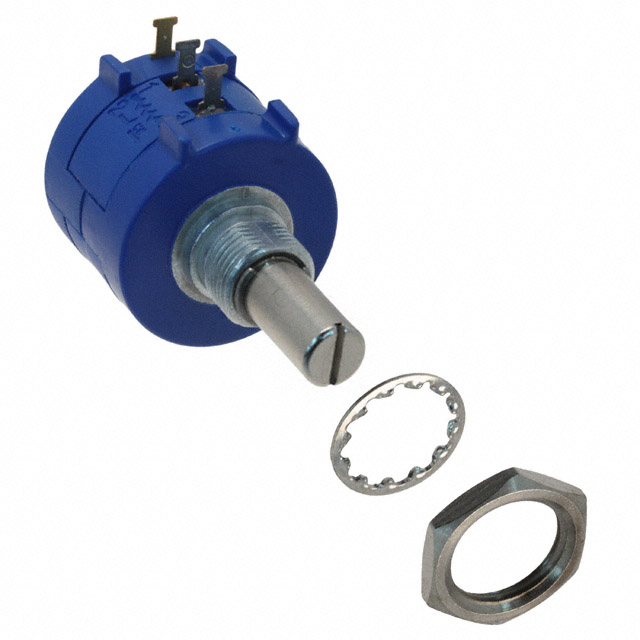

3590S-2-501

Obsolete

Bourns Inc.

POT 500 OHM 2W WIREWOUND LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3590S-2-501

Obsolete

Bourns Inc.

POT 500 OHM 2W WIREWOUND LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3590S-2-501

Actuator Diameter [diameter]	6.34 mm
Actuator Diameter [diameter]	0.2497 in
Actuator Length [z]	0.812 in
Actuator Length [z]	20.63 mm
Actuator Type	Slotted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	3/8-32
Number of Gangs	1
Number of Turns	10
Power (Watts)	2 W
Resistance (Ohms)	500 Ohms
Resistive Material	Wirewound
Rotation	3600 °
Size - Body [diameter]	22.23 mm
Size - Body [diameter]	0.875 "
Taper	Linear
Temperature Coefficient	50 ppm/°C
Termination Style	Solder Lug
Tolerance	5 %

3590S Series

Part	Size - Body [diameter]	Size - Body [diameter]	Resistive Material	Temperature Coefficient	Actuator Length [z]	Actuator Length [z]	Number of Gangs	Power (Watts)	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Termination Style	Bushing Thread	Adjustment Type	Tolerance	Rotation	Number of Turns	Taper	Resistance (Ohms)	Actuator Type	Features	Resistance (Ohms)	Bushing Thread
Bourns Inc. 3590S-2-201L	22.23 mm	0.875 "	Wirewound	50 ppm/°C	0.812 in	20.63 mm	1	2 W	6.34 mm	0.2497 in	Solder Lug	3/8-32	User Defined	5 %	3600 °	10	Linear	200 Ohms	Slotted
Bourns Inc. 3590S-2-102	22.23 mm	0.875 "	Wirewound	50 ppm/°C	0.812 in	20.63 mm	1	2 W	6.34 mm	0.2497 in	Solder Lug	3/8-32	User Defined	5 %	3600 °	10	Linear	1 kOhms	Slotted
Bourns Inc. 3590S-1-502	22.23 mm	0.875 "	Wirewound	50 ppm/°C	0.812 in	20.63 mm	1	2 W	6.3 mm	0.248 in	Solder Lug	3/8-32	User Defined	5 %	3600 °	10	Linear	5 kOhms	Slotted
Bourns Inc. 3590S-1-503	22.23 mm	0.875 "	Wirewound	50 ppm/°C	0.812 in	20.63 mm	1	2 W	6.3 mm	0.248 in	Solder Lug	3/8-32	User Defined	5 %	3600 °	10	Linear	50 kOhms	Slotted
Bourns Inc. 3590S-4-502L	22.23 mm	0.875 "	Wirewound	50 ppm/°C	0.812 in	20.63 mm	1	2 W	6.34 mm	0.2497 in	Solder Lug	3/8-32	User Defined	5 %	3600 °	10	Linear	5 kOhms	Slotted	Sealed
Bourns Inc. 3590S-8-103L	22.23 mm	0.875 "	Wirewound	50 ppm/°C	0.812 in	20.63 mm	1	2 W	6 mm	0.236 in	Solder Lug	M9	User Defined	5 %	3600 °	10	Linear		Slotted	Sealed	10k	0.375
Bourns Inc. 3590S-1-203L	22.23 mm	0.875 "	Wirewound	50 ppm/°C	0.812 in	20.63 mm	1	2 W	6.3 mm	0.248 in	Solder Lug	3/8-32	User Defined	5 %	3600 °	10	Linear	20 kOhms	Slotted
Bourns Inc. 3590S-2-501	22.23 mm	0.875 "	Wirewound	50 ppm/°C	0.812 in	20.63 mm	1	2 W	6.34 mm	0.2497 in	Solder Lug	3/8-32	User Defined	5 %	3600 °	10	Linear	500 Ohms	Slotted
Bourns Inc. 3590S-2-104L	22.23 mm	0.875 "	Wirewound	50 ppm/°C	0.812 in	20.63 mm	1	2 W	6.34 mm	0.2497 in	Solder Lug	3/8-32	User Defined	5 %	3600 °	10	Linear	100 kOhms	Slotted
Bourns Inc. 3590S-2-103	22.23 mm	0.875 "	Wirewound	50 ppm/°C	0.812 in	20.63 mm	1	2 W	6.34 mm	0.2497 in	Solder Lug	3/8-32	User Defined	5 %	3600 °	10	Linear		Slotted		10k

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3590S Series

500 Ohm 1 Gang Linear Panel Mount Potentiometer 10.0 Turns Wirewound 2W Solder Lug

Documents

Technical documentation and resources
