950410-6102-AR

Obsolete

3M (TC)

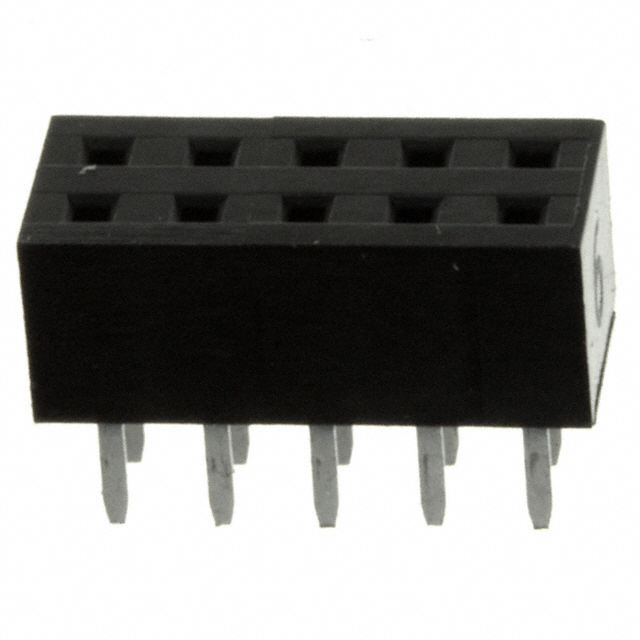

PCB RECEPTACLE, BOARD-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE MOUNT, 950 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 3D Product Image EN +1

950410-6102-AR

Obsolete

3M (TC)

PCB RECEPTACLE, BOARD-TO-BOARD, 2 MM, 2 ROWS, 10 CONTACTS, THROUGH HOLE MOUNT, 950 SERIES

Deep-Dive with AI

DocumentsDatasheet 3D Product Image EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	950410-6102-AR

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	1.02 Ám
Contact Finish Thickness - Post	40 Áin
Contact Length - Post [x]	0.106 in
Contact Length - Post [x]	2.69 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	4.3 mm
Insulation Height	0.169 "
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Termination	Solder
Voltage Rating	1000 VDC

950410 Series

Part	Voltage Rating	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Contact Shape	Contact Material	Connector Type	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Pitch - Mating [x]	Pitch - Mating [x]	Features	Contact Type	Number of Positions Loaded	Termination	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Fastening Type	Mounting Type	Contact Finish - Post	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Post	Contact Length - Post
3M (TC) 950410-8220-AR-TR	1000 VDC	2	1.02 Ám	40 Áin	Gold	Flash	UL94 V-0	Square	Copper Alloy	Receptacle	Black	-40 °C	105 ░C	4.9 mm	0.193 in	0.079 in	2 mm	Board Guide	Female Socket	All	Solder	10	0.079 in	2 mm	Thermoplastic	Push-Pull	Surface Mount Right Angle	Tin
3M (TC) 950410-6102-AR	1000 VDC	2	1.02 Ám	40 Áin	Gold	Flash	UL94 V-0	Square	Copper Alloy	Receptacle	Black	-40 °C	105 ░C	4.3 mm	0.169 "	0.079 in	2 mm		Female Socket	All	Solder	10	0.079 in	2 mm	Thermoplastic	Push-Pull	Through Hole	Tin	0.106 in	2.69 mm
3M (TC) 950410-5002-AR	1000 VDC	2	1.02 Ám	40 Áin	Gold	Flash	UL94 V-0	Square	Copper Alloy	Receptacle	Black	-40 °C	105 ░C	4.85 mm	0.191 in	0.079 in	2 mm		Female Socket	All	Solder	10	0.079 in	2 mm	Thermoplastic	Push-Pull	Through Hole Right Angle	Tin			0.118 in	3 mm
3M (TC) 950410-8200-AR-TR	1000 VDC	2	1.02 Ám	40 Áin	Gold	Flash	UL94 V-0	Square	Copper Alloy	Receptacle	Black	-40 °C	105 ░C	4.9 mm	0.193 in	0.079 in	2 mm		Female Socket	All	Solder	10	0.079 in	2 mm	Thermoplastic	Push-Pull	Surface Mount Right Angle	Tin
