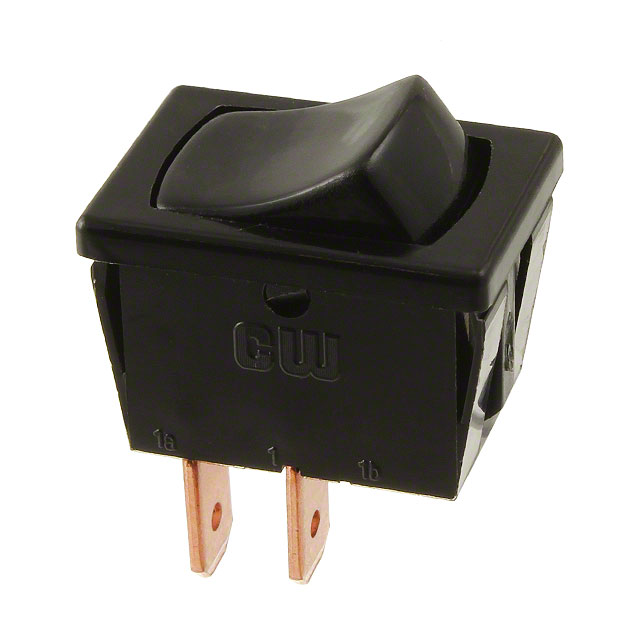

Specification	GRSV-4011B-0027

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	SPST-NO
Color - Actuator/Cap	Black
Current Rating	5 A, 13 A
Electrical Life (Cycles)	10000 Cycles
Mechanical Life (Cycles)	30000 Cycles
Mounting Type	Panel Mount, Snap-In
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-20 °C
Panel Cutout Length	19.2 mm
Panel Cutout Shape	Rectangular
Panel Cutout Width	12.9 mm
Quick Connect Size (0.187")	0.187 in
Switch Function	Off-Mom
Termination Style	Quick Connect
Voltage Rating - AC	125 V
Voltage Rating - DC	14 V

GRSV-4011 Series

Part	Current Rating	Actuator Marking	Panel Cutout Length	Panel Cutout Shape	Panel Cutout Width	Voltage Rating - AC	Quick Connect Size (0.187")	Termination Style	Actuator Type	Color - Actuator/Cap	Mounting Type	Circuit	Switch Function	Electrical Life (Cycles)	Mechanical Life (Cycles)	Operating Temperature (Min)	Operating Temperature (Max)	Voltage Rating - DC	Features
CW Industries GRSV-4011-0137	8 A	ON OFF Vertical	19.2 mm	Rectangular	12.9 mm	125 V	0.187 in	Quick Connect	Concave (Curved)	Red	Panel Mount Snap-In	SPST	On-Off
CW Industries GRSV-4011-0135	8 A	Light Bulb	19.2 mm	Rectangular	12.9 mm	125 V	0.187 in	Quick Connect	Concave (Curved)	White	Panel Mount Snap-In	SPST	On-Off
CW Industries GRSV-4011B-0027	5 A 13 A	No Marking	19.2 mm	Rectangular	12.9 mm	125 V	0.187 in	Quick Connect	Concave (Curved)	Black	Panel Mount Snap-In	SPST-NO	Off-Mom	10000 Cycles	30000 Cycles	-20 °C	105 °C	14 V
CW Industries GRSV-4011B-0030	5 A 13 A	No Marking	19.2 mm	Rectangular	12.9 mm	125 V	0.187 in	Quick Connect	Concave (Curved)	Black	Panel Mount Snap-In	SPST-NO	Off-Mom	10000 Cycles	30000 Cycles	-20 °C	105 °C	14 V
CW Industries GRSV-4011-0126	5 A 13 A	No Marking	19.2 mm	Rectangular	12.9 mm	125 V	0.187 in	Quick Connect	Concave (Curved)	White	Panel Mount Snap-In	SPST	On-Off	25000	100000 Cycles	-20 °C	105 °C	14 V
CW Industries GRSV-4011-0011	16 A	No Marking	28.58 mm	Rectangular	12.9 mm	125 V	0.187 in	Quick Connect	Concave (Curved)	Black	Panel Mount Snap-In	SPST	On-Off						Polarized Terminal Barriers
CW Industries GRSV-4011-0127	5 A 13 A	No Marking	19.2 mm	Rectangular	12.9 mm	125 V	0.187 in	Quick Connect	Concave (Curved)	Bisque	Panel Mount Snap-In	SPST	On-Off	25000	100000 Cycles	-20 °C	105 °C	14 V
CW Industries GRSV-4011-0134	8 A	Light Bulb	19.2 mm	Rectangular	12.9 mm	125 V	0.187 in	Quick Connect	Concave (Curved)	Black	Panel Mount Snap-In	SPST	On-Off
CW Industries GRSV-4011-0133	8 A	No Marking	19.2 mm	Rectangular	12.9 mm	125 V	0.187 in	Quick Connect	Concave (Curved)	Bisque Brown-Gray	Panel Mount Snap-In	SPST	On-Off

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

GRSV-4011B-0027 | Datasheet
