KISSLING Series 31 Series

Part	Features	Coil Voltage	Release Time	Contact Rating (Current)	Operate Time	Mounting Type	Termination Style	Operating Temperature (Min)	Operating Temperature (Max)	Relay Type	Coil Type	Contact Form	Contact Material	Must Operate Voltage

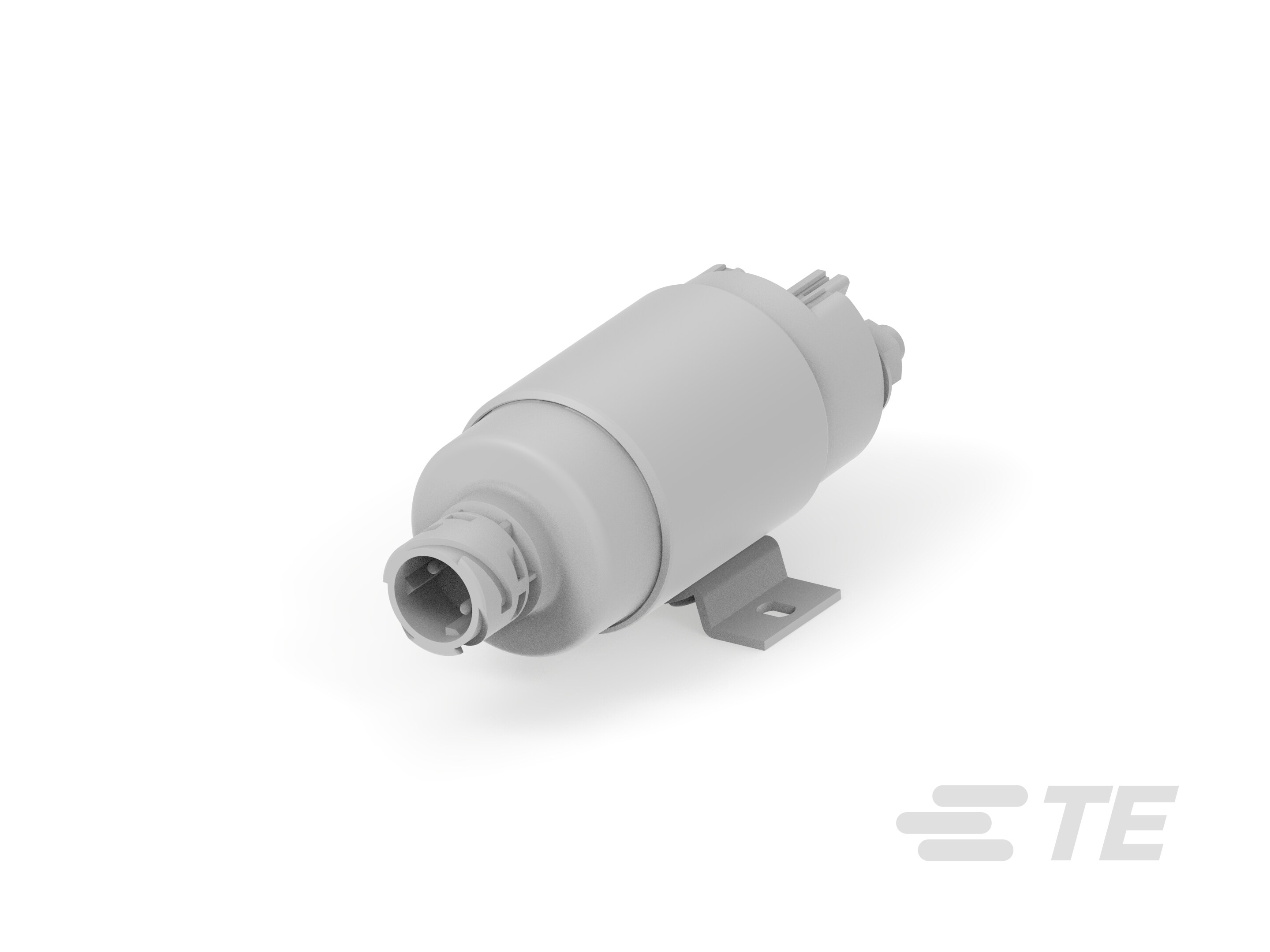

TE Connectivity AMP Connectors 31-211-12-E-906
TE Connectivity AMP Connectors 31-311-12-S-P-A
TE Connectivity AMP Connectors 31-311-12-E	Diode	28 VDC	100 ms	300 A	500 ms	Chassis Mount	Screw Terminal	-40 °C	85 °C	General Purpose	Dual Coil Latching	1 DM Form SPST-NO X	Silver Tin Oxide (AgSnO)
TE Connectivity AMP Connectors 31-311-11-S	Diode	12 VAC	250 ms	300 A	250 ms	Chassis Mount	Screw Terminal	-40 °C	85 °C	General Purpose	Dual Coil Latching	1 DM Form SPST-NO X	Silver Tin Oxide (AgSnO)	9 VDC
TE Connectivity AMP Connectors 31-311-11-E	Diode	12 VAC	100 ms	300 A	500 ms	Chassis Mount	Screw Terminal	-40 °C	85 °C	General Purpose	Dual Coil Latching	1 DM Form SPST-NO X	Silver Tin Oxide (AgSnO)

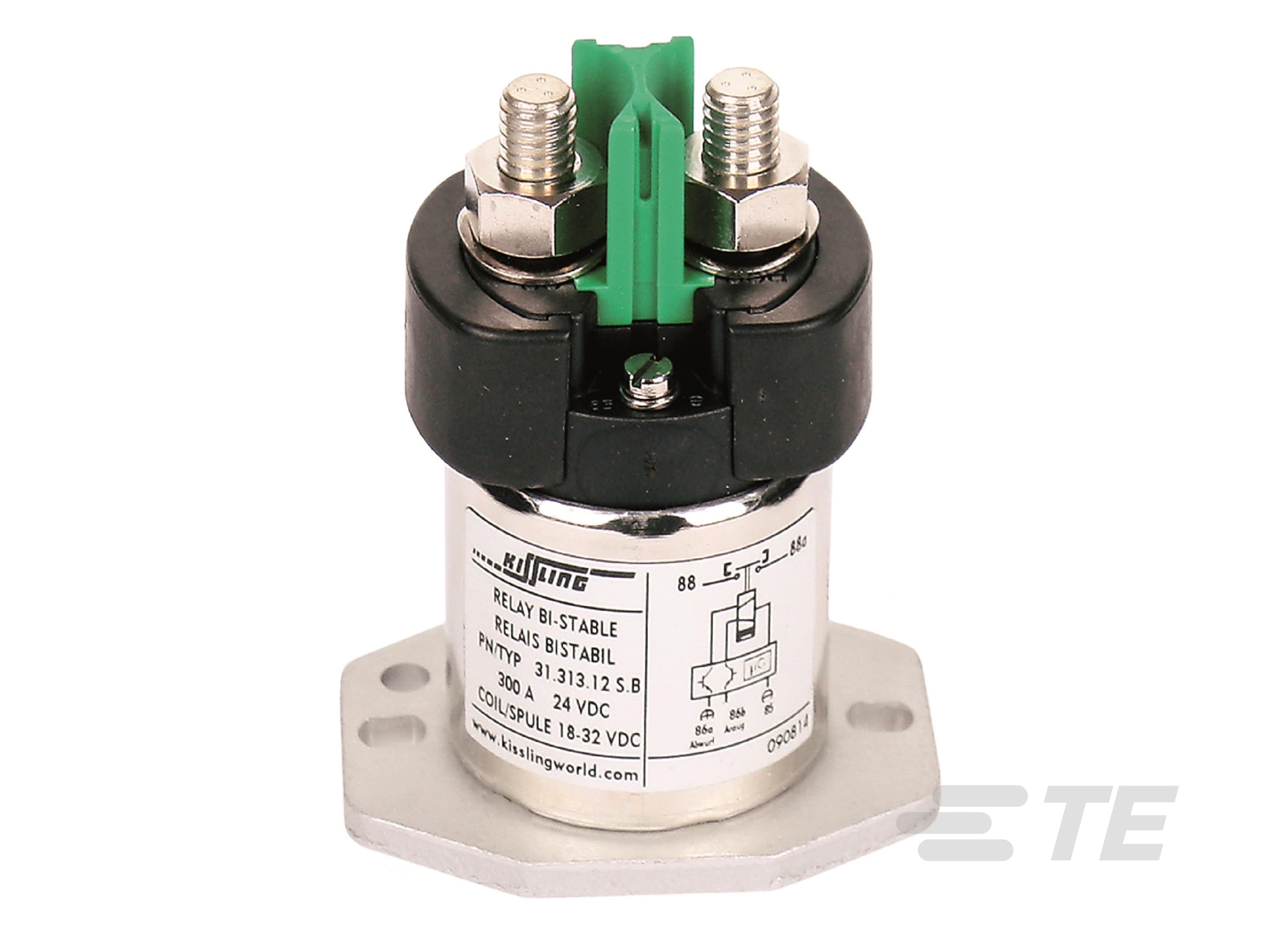

TE Connectivity AMP Connectors 31-313-12-S	Diode	28 VDC	250 ms	300 A	250 ms	Chassis Mount	Screw Terminal	-40 °C	85 °C	General Purpose	Dual Coil Latching	1 DM Form SPST-NO X	Silver Tin Oxide (AgSnO)	18 VDC
TE Connectivity AMP Connectors 31-311-12-I	Diode	28 VDC	150 ms	300 A	150 ms	Chassis Mount	Screw Terminal	-40 °C	85 °C	General Purpose	Dual Coil Latching	1 DM Form SPST-NO X	Silver Tin Oxide (AgSnO)
TE Connectivity AMP Connectors 31-311-11-I	Diode	12 VAC	150 ms	300 A	150 ms	Chassis Mount	Screw Terminal	-40 °C	85 °C	General Purpose	Dual Coil Latching	1 DM Form SPST-NO X	Silver Tin Oxide (AgSnO)
