TMC1320-LA

Active

Analog Devices Inc./Maxim Integrated

MOSFET N/P-CH 30V 7.3A 8PQFN

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

MOSFET N/P-CH 30V 7.3A 8PQFN

Technical Specifications

Parameters and characteristics for this part

Specification	TMC1320-LA

Configuration	Common Drain, N and P-Channel
Current - Continuous Drain (Id) @ 25°C [Max]	7.3 A
Current - Continuous Drain (Id) @ 25°C [Min]	5.3 A
Drain to Source Voltage (Vdss)	30 V
Gate Charge (Qg) (Max) @ Vgs [Max]	7.2 nC
Input Capacitance (Ciss) (Max) @ Vds	400 pF
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C

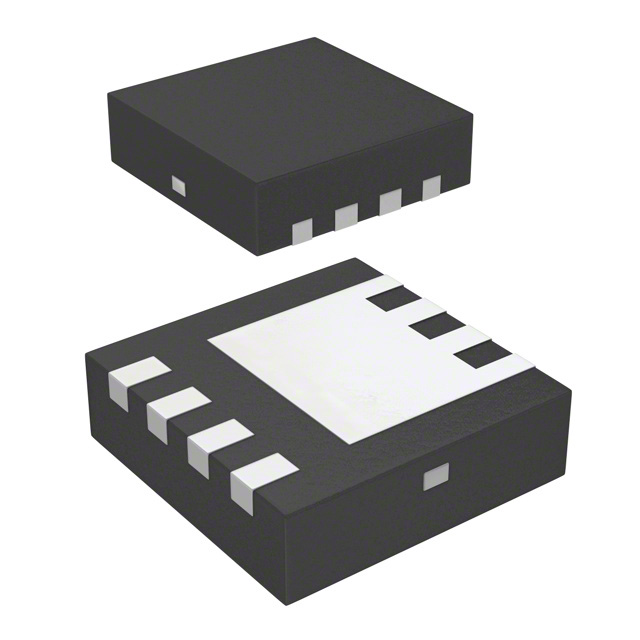

Package / Case	8-PowerTDFN
Power - Max [Max]	2.5 W
Rds On (Max) @ Id, Vgs	30 mOhm
Supplier Device Package	8-PQFN (3x3)
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

MOSFET N/P-CH 30V 7.3A 8PQFN

Part	Gate Charge (Qg) (Max) @ Vgs [Max]	Rds On (Max) @ Id, Vgs	Power - Max [Max]	Package / Case	Supplier Device Package	Technology	Drain to Source Voltage (Vdss)	Input Capacitance (Ciss) (Max) @ Vds	Vgs(th) (Max) @ Id	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Current - Continuous Drain (Id) @ 25°C [Max]	Current - Continuous Drain (Id) @ 25°C [Min]
Analog Devices Inc./Maxim Integrated TMC1320-LA	7.2 nC	30 mOhm	2.5 W	8-PowerTDFN	8-PQFN (3x3)	MOSFET (Metal Oxide)	30 V	400 pF	3 V	Common Drain, N and P-Channel	-55 °C	150 °C	Surface Mount	7.3 A	5.3 A

General part information

Mosfet Array 30V 7.3A, 5.3A 2.5W Surface Mount 8-PQFN (3x3)
