746-032-520-106

Active

EDAC Inc.

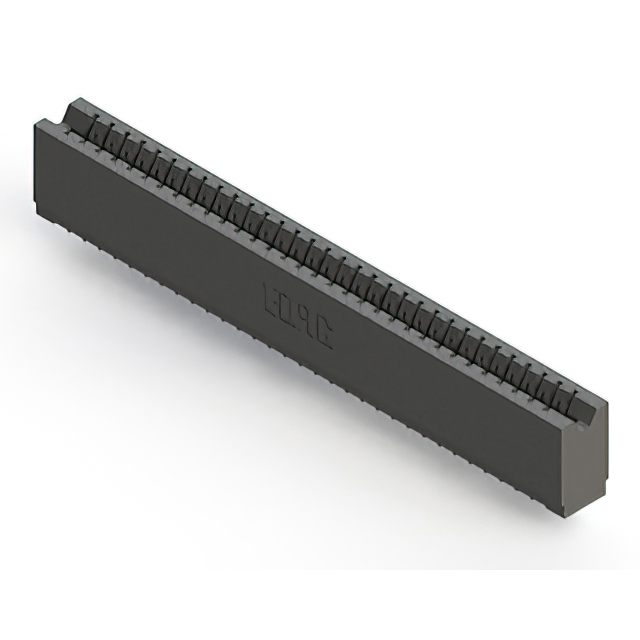

3.18MM STRAIGHT 32P -40℃~+105℃ PLUGIN,P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

746-032-520-106

Active

EDAC Inc.

3.18MM STRAIGHT 32P -40℃~+105℃ PLUGIN,P=3.18MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	746-032-520-106

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions/Bay/Row [custom]	32
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Single
Termination	Press-Fit
Termination Rows	1

746-032 Series

Part	Contact Type	Color	Number of Rows	Read Out	Contact Material	Pitch [x]	Pitch [x]	Gender	Contact Finish Thickness	Contact Finish Thickness	Card Type	Termination	Termination Rows	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Material - Insulation	Contact Finish	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Positions/Bay/Row [custom]
EDAC Inc. 746-032-553-601	Cantilever	Black	2	Dual	Copper Alloy	0.125 in	3.18 mm	Female	0.76 Ám	30 Áin	Non Specified - Dual Edge	Press-Fit Wire Wrap	2	-40 °C	105 ░C	Through Hole	Polyester Thermoplastic	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	16
EDAC Inc. 746-032-520-606	Cantilever	Black	2	Dual	Copper Alloy	0.125 in	3.18 mm	Female	0.76 Ám	30 Áin	Non Specified - Dual Edge	Press-Fit	2	-40 °C	105 ░C	Through Hole	Polyester Thermoplastic	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	16
EDAC Inc. 746-032-520-506	Cantilever	Black	1	Single	Copper Alloy	0.125 in	3.18 mm	Female	0.76 Ám	30 Áin	Non Specified - Single Edge	Press-Fit	1	-40 °C	105 ░C	Through Hole	Polyester Thermoplastic	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	32
EDAC Inc. 746-032-545-206	Cantilever	Black	2	Dual	Copper Alloy	0.125 in	3.18 mm	Female	0.76 Ám	30 Áin	Non Specified - Dual Edge	Press-Fit Wire Wrap	2	-40 °C	105 ░C	Through Hole	Polyester Thermoplastic	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	16
EDAC Inc. 746-032-541-101	Cantilever	Black	1	Single	Copper Alloy	0.125 in	3.18 mm	Female	0.76 Ám	30 Áin	Non Specified - Single Edge	Press-Fit Wire Wrap	1	-40 °C	105 ░C	Through Hole	Polyester Thermoplastic	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	32
EDAC Inc. 746-032-525-101	Cantilever	Black	1	Single	Copper Alloy	0.125 in	3.18 mm	Female	0.76 Ám	30 Áin	Non Specified - Single Edge	Press-Fit	1	-40 °C	105 ░C	Through Hole	Polyester Thermoplastic	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	32
EDAC Inc. 746-032-520-106	Cantilever	Black	1	Single	Copper Alloy	0.125 in	3.18 mm	Female	0.76 Ám	30 Áin	Non Specified - Single Edge	Press-Fit	1	-40 °C	105 ░C	Through Hole	Polyester Thermoplastic	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	32
EDAC Inc. 746-032-540-201	Cantilever	Black	2	Dual	Copper Alloy	0.125 in	3.18 mm	Female	0.76 Ám	30 Áin	Non Specified - Dual Edge	Press-Fit Wire Wrap	2	-40 °C	105 ░C	Through Hole	Polyester Thermoplastic	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	16
EDAC Inc. 746-032-541-106	Cantilever	Black	1	Single	Copper Alloy	0.125 in	3.18 mm	Female	0.76 Ám	30 Áin	Non Specified - Single Edge	Press-Fit Wire Wrap	1	-40 °C	105 ░C	Through Hole	Polyester Thermoplastic	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	32
EDAC Inc. 746-032-525-601	Cantilever	Black	2	Dual	Copper Alloy	0.125 in	3.18 mm	Female	0.76 Ám	30 Áin	Non Specified - Dual Edge	Press-Fit	2	-40 °C	105 ░C	Through Hole	Polyester Thermoplastic	Gold	1.37 mm	0.054 "	1.78 mm	0.07 in	16
