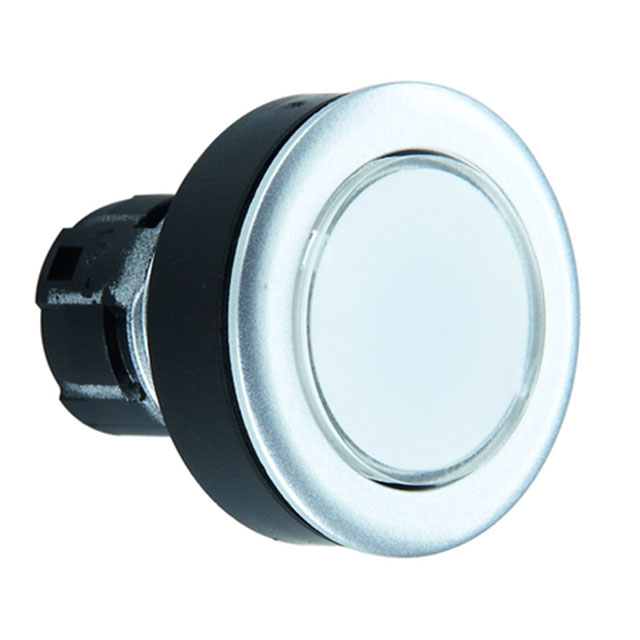

1.65.126.011/1000

Active

RAFI USA

LED PANEL INDICATOR CLEAR IP65

Search across all available documentation for this part.

Active

RAFI USA

LED PANEL INDICATOR CLEAR IP65

Technical Specifications

Parameters and characteristics for this part

Part	Type	Panel Cutout Shape	Lens Color	Lens Size [diameter]	Panel Cutout Dimensions	Panel Cutout Dimensions	Ingress Protection	Lens Transparency	Lamp Color	Lens Size	Lens Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]
RAFI USA 1.65.126.011/1000	LED	Round	Colorless	28 mm	0.88 in	22.3 mm	IP65	Clear
RAFI USA 1.65.126.001/1400		Round	Yellow	28 mm	0.88 in	22.3 mm	IP65	Clear	Yellow
RAFI USA 1.65.126.101/0000		Round		28 mm	0.88 in	22.3 mm			White
RAFI USA 1.65.126.401/0000		Square							Red	24.9 mm	Square with Flat Top	23.11 mm	0.91 in
RAFI USA 1.65.126.301/1000	LED	Square	Colorless				IP65	Clear	Red	24.9 mm	Square with Flat Top	23.11 mm	0.91 in
RAFI USA 1.65.126.301/1400		Square	Yellow				IP65	Clear	Red	24.9 mm	Square with Flat Top	23.11 mm	0.91 in
RAFI USA 1.65.126.301/1300		Square	Red				IP65	Clear	Red	24.9 mm	Square with Flat Top	23.11 mm	0.91 in
RAFI USA 1.65.126.001/1500		Round	Green	28 mm	0.88 in	22.3 mm	IP65	Clear	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Clear

Technical documentation and resources
