Q-2C04400030.5M

Active

Amphenol Custom Cable

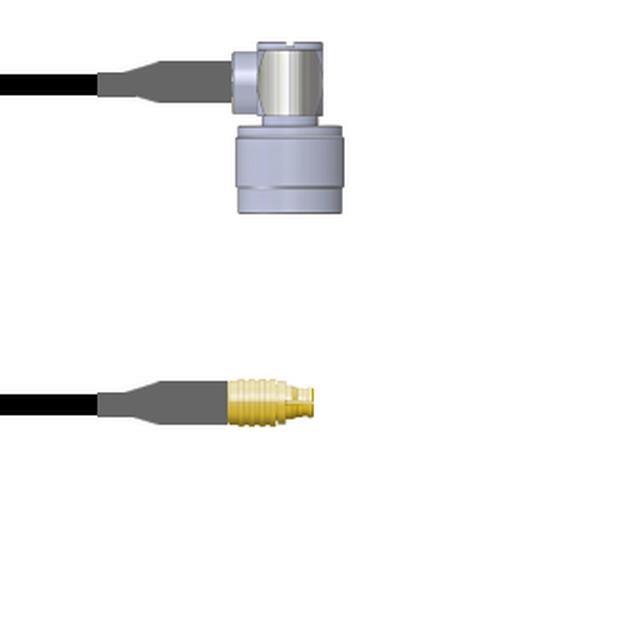

CBL ASSY SMP-NTYPE PLG-PL 19.69"

Deep-Dive with AI

Search across all available documentation for this part.

Q-2C04400030.5M

Active

Amphenol Custom Cable

CBL ASSY SMP-NTYPE PLG-PL 19.69"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2C04400030.5M

1st Connector	SMP Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	N-Type Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	50 cm
Length	19.69 "
Overall Impedance	50 Ohms
Style	SMP to N-Type

Q-2C0440 Series

Part	Frequency - Max [Max]	Features	2nd Connector	1st Connector	1st Contact Gender	2nd Contact Gender	Length	Length	Length	Cable Type	2nd Connector Mounting Type	Overall Impedance	Color	Style	1st Connector Mounting Type	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-2C0440005048i	11 GHz	Shielded	N-Type Plug Right Angle	SMP Plug	Male	Male	1200 mm	4 ft	48 in	RG-316	Free Hanging (In-Line)	50 Ohms	Copper	SMP to N-Type	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C0440003.25M	11 GHz	Shielded	N-Type Plug Right Angle	SMP Plug	Male	Male				RG-174	Free Hanging (In-Line)	50 Ohms	Black	SMP to N-Type	Free Hanging (In-Line)	9.843 "	250 mm
Amphenol Custom Cable Q-2C0440005001M	11 GHz	Shielded	N-Type Plug Right Angle	SMP Plug	Male	Male	1 m	3.3 ft	39.4 in	RG-316	Free Hanging (In-Line)	50 Ohms	Copper	SMP to N-Type	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C0440005003i	11 GHz	Shielded	N-Type Plug Right Angle	SMP Plug	Male	Male	76.2 mm		3 in	RG-316	Free Hanging (In-Line)	50 Ohms	Copper	SMP to N-Type	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C0440003003i	11 GHz	Shielded	N-Type Plug Right Angle	SMP Plug	Male	Male	76.2 mm		3 in	RG-174	Free Hanging (In-Line)	50 Ohms	Black	SMP to N-Type	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C0440003009i	11 GHz	Shielded	N-Type Plug Right Angle	SMP Plug	Male	Male	228.6 mm		9 "	RG-174	Free Hanging (In-Line)	50 Ohms	Black	SMP to N-Type	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C0440003012i	11 GHz	Shielded	N-Type Plug Right Angle	SMP Plug	Male	Male	304.8 mm		12 "	RG-174	Free Hanging (In-Line)	50 Ohms	Black	SMP to N-Type	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C0440003018i	11 GHz	Shielded	N-Type Plug Right Angle	SMP Plug	Male	Male				RG-174	Free Hanging (In-Line)	50 Ohms	Black	SMP to N-Type	Free Hanging (In-Line)		457.2 mm	457.2 mm
Amphenol Custom Cable Q-2C04400030.5M	11 GHz	Shielded	N-Type Plug Right Angle	SMP Plug	Male	Male	50 cm		19.69 "	RG-174	Free Hanging (In-Line)	50 Ohms	Black	SMP to N-Type	Free Hanging (In-Line)
Amphenol Custom Cable Q-2C0440005084i	11 GHz	Shielded	N-Type Plug Right Angle	SMP Plug	Male	Male	2.1 m	7 ft	84 in	RG-316	Free Hanging (In-Line)	50 Ohms	Copper	SMP to N-Type	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 117.05
		25	$ 114.79
		50	$ 112.53
		100	$ 110.27
		250	$ 108.00

Description

General part information

Q-2C0440 Series

Cable Assembly Coaxial SMP to N-Type RG-174 19.69" (500.00mm)

Documents

Technical documentation and resources

No documents available
