MPC9449AE
ObsoleteRenesas Electronics Corporation
3.3V/2.5V 1:15 PECL/LVCMOS CLOCK FANOUT BUFFER
MPC9449AE
ObsoleteRenesas Electronics Corporation
3.3V/2.5V 1:15 PECL/LVCMOS CLOCK FANOUT BUFFER
Description
General part information
MPC9449 Series

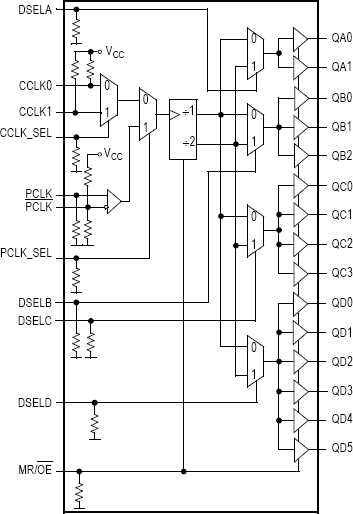

The MPC9449 is a 3.3 V or 2.5 V compatible, 1:15 clock fanout buffer targeted for high performance clock tree applications. With output frequencies up to 200 MHz and output skews less than 200 ps the device meets the needs of the most demanding clock applications.
Technical Specifications
Parameters and characteristics for this part
| Specification | MPC9449AE |
|---|---|
| Differential Input | Yes |
| Differential Output | No |
| Frequency - Max | 200 MHz |
| Input | LVCMOS, LVPECL |
| Input Ratio | 3 |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | LVCMOS |
| Output Ratio | 15 |
| Package / Case | 52-LQFP |
| Package Length | 10 mm |
| Package Name | 52-TQFP |
| Package Width | 10 mm |
| Type | Multiplexer, Divider, Fanout Buffer (Distribution) |
| Voltage - Supply (Maximum) | 3.465 V |
| Voltage - Supply (Minimum) | 2.375 V |
