911M-2-1-00700-PL

Active

CnC Tech, LLC

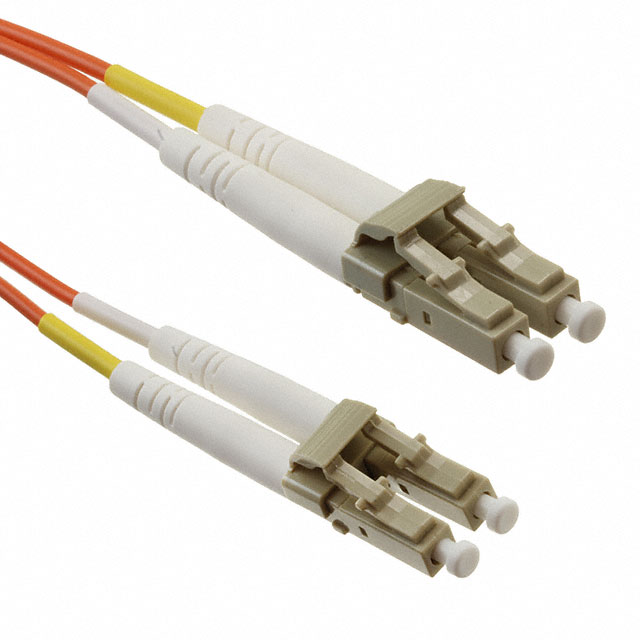

FIBER OPTIC CBL LC-LC DUPLEX 7M

Deep-Dive with AI

Search across all available documentation for this part.

911M-2-1-00700-PL

Active

CnC Tech, LLC

FIBER OPTIC CBL LC-LC DUPLEX 7M

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	911M-2-1-00700-PL	911M-2-1 Series

1st Connector	LC Duplex	LC Duplex
2nd Connector	LC Duplex	LC Duplex
Cable Diameter [diameter]	2 mm	2 mm
Cable Diameter [diameter]	0.08 in	0.08 in
Color - Cable	Orange	Orange
Color - Connectors	Beige	Beige
Features	Plenum	Plenum
Fiber Type	62.5/125	62.5/125
Insertion Loss	0.3 dB	0.3 dB
Jacket (Insulation) Material	-	Poly-Vinyl Chloride (PVC)
Length - Overall	-	5 m
Length - Overall	-	16.4 ft
Length - Overall [x]	7 m	1 - 25 m
Length - Overall [x]	23 ft	3.3 - 82 ft
Ratings	OFNP	OFNP
Type	Multimode, Duplex, OM1	Multimode, Duplex, OM1

911M-2-1 Series

FIBER OPTIC CBL LC-LC DUPLEX 3M

Part	Length - Overall [x]	Length - Overall [x]	Insertion Loss	Type	Features	Ratings	2nd Connector	Color - Connectors	Cable Diameter [diameter]	Cable Diameter [diameter]	Fiber Type	1st Connector	Color - Cable	Jacket (Insulation) Material	Length - Overall	Length - Overall
CnC Tech, LLC 911M-2-1-00300-PL	3 m	9.8 ft	0.3 dB	Duplex, Multimode, OM1	Plenum	OFNP	LC Duplex	Beige	2 mm	0.08 in	62.5/125	LC Duplex	Orange
CnC Tech, LLC 911M-2-1-01500	15 m	49.2 '	0.3 dB	Duplex, Multimode, OM1			LC Duplex	Beige	2 mm	0.08 in	62.5/125	LC Duplex	Orange	Poly-Vinyl Chloride (PVC)
CnC Tech, LLC 911M-2-1-00200-PL	2 m	6.6 ft	0.3 dB	Duplex, Multimode, OM1	Plenum	OFNP	LC Duplex	Beige	2 mm	0.08 in	62.5/125	LC Duplex	Orange
CnC Tech, LLC 911M-2-1-00700-PL	7 m	23 ft	0.3 dB	Duplex, Multimode, OM1	Plenum	OFNP	LC Duplex	Beige	2 mm	0.08 in	62.5/125	LC Duplex	Orange
CnC Tech, LLC 911M-2-1-00700	7 m	23 ft	0.3 dB	Duplex, Multimode, OM1			LC Duplex	Beige	2 mm	0.08 in	62.5/125	LC Duplex	Orange	Poly-Vinyl Chloride (PVC)
CnC Tech, LLC 911M-2-1-00100-PL	1 m	3.3 ft	0.3 dB	Duplex, Multimode, OM1	Plenum	OFNP	LC Duplex	Beige	2 mm	0.08 in	62.5/125	LC Duplex	Orange
CnC Tech, LLC 911M-2-1-00500			0.3 dB	Duplex, Multimode, OM1			LC Duplex	Beige	2 mm	0.08 in	62.5/125	LC Duplex	Orange	Poly-Vinyl Chloride (PVC)	5 m	16.4 ft
CnC Tech, LLC 911M-2-1-02500	25 m	82 ft	0.3 dB	Duplex, Multimode, OM1			LC Duplex	Beige	2 mm	0.08 in	62.5/125	LC Duplex	Orange	Poly-Vinyl Chloride (PVC)
CnC Tech, LLC 911M-2-1-00200	2 m	6.6 ft	0.3 dB	Duplex, Multimode, OM1			LC Duplex	Beige	2 mm	0.08 in	62.5/125	LC Duplex	Orange	Poly-Vinyl Chloride (PVC)
CnC Tech, LLC 911M-2-1-01500-PL	15 m	49.2 '	0.3 dB	Duplex, Multimode, OM1	Plenum	OFNP	LC Duplex	Beige	2 mm	0.08 in	62.5/125	LC Duplex	Orange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 30.96

Description

General part information

911M-2-1 Series

Cable Fiber Optic LC Duplex To LC Duplex 62.5/125 23.0' (7.0m)

Documents

Technical documentation and resources

No documents available
