AAAF3529SEEZGKQBKS

Active

Kingbright

STANDARD LEDS - SMD 3.5X2.8MM RGB SM RGB SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

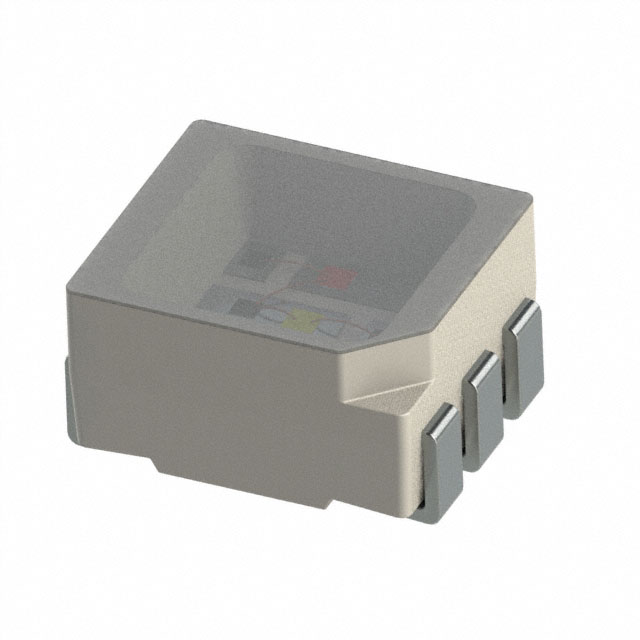

AAAF3529SEEZGKQBKS

Active

Kingbright

STANDARD LEDS - SMD 3.5X2.8MM RGB SM RGB SMD

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AAAF3529SEEZGKQBKS

Color	Red, Green, Blue
Configuration	Independent
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Current - Test [custom]	20 mA
Height (Max) [Max] [z]	1.85 mm
Lens Color	Colorless
Lens Size	2.44 mm
Lens Style	Square with Flat Top
Lens Transparency	Clear
Millicandela Rating [custom]	580 mcd
Millicandela Rating [custom]	130 mcd
Millicandela Rating [custom]	180 mcd
Mounting Type	Surface Mount
Package / Case	6-PLCC
Size / Dimension [x]	3.2 mm
Size / Dimension [y]	2.8 mm
Supplier Device Package	6-SMD
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.3 V, 3.3 V, 2 V
Wavelength - Dominant	465 nm, 621 nm, 525 nm
Wavelength - Peak [custom]	630 nm
Wavelength - Peak [custom]	460 nm
Wavelength - Peak [custom]	515 nm

HeliColour Series

Standard LEDs - SMD 3.5x2.8MM RGB SM RGB SMD

Part	Lens Style	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Wavelength - Peak [custom]	Lens Color	Lens Size	Package / Case	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Lens Transparency	Height (Max) [Max] [z]	Current - Test [custom]	Current - Test [custom]	Current - Test [custom]	Configuration	Supplier Device Package	Voltage - Forward (Vf) (Typ)	Viewing Angle	Wavelength - Dominant	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Color	Lens Type	Wavelength - Peak	Lens Size [diameter]	Millicandela Rating	Current	Voltage Rating	Current [custom]	Current [custom]	Current [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Millicandela Rating	Voltage Rating	Current - Test	Wavelength - Dominant [custom]	Wavelength - Dominant [custom]	Wavelength - Peak [custom]	Current - Test	Voltage Rating	Voltage Rating	Wavelength - Peak [custom]	Current
Kingbright AAAF3529SEEZGKQBKS	Square with Flat Top	630 nm	460 nm	515 nm	Colorless	2.44 mm	6-PLCC	580 mcd	130 mcd	180 mcd	Clear	1.85 mm	20 mA	20 mA	20 mA	Independent	6-SMD	2 V 3.3 V 3.3 V	120 °	465 nm 525 nm 621 nm	2.8 mm	3.2 mm	Surface Mount	Blue Green Red
Kingbright AAA3528AVU/AZGKSYKCT	Round with Domed Top															Single			50 °				Surface Mount Right Angle	Green Yellow	Clear	515 nm 590 nm	2.85 mm	130mcd Yellow 300mcd Green	20mA Green 20mA Yellow
Kingbright AAA3528AVU/ARBGS-112	Round with Domed Top							200 mcd	80 mcd	80 mcd						Single			60 °				Surface Mount Right Angle	Blue Green Red	Clear	465 nm 515 nm 630 nm	2.85 mm			2V Red 3.3V Blue 3.3V Green	20 mA	20 mA	20 mA
Kingbright AAA3528SEKJ3ZGKQBKS					Colorless		4-PLCC				Clear	2.1 mm	20 mA	20 mA	20 mA	Common Cathode	4-SMD		120 °	465 nm 525 nm 625 nm	2.8 mm	3.2 mm	Surface Mount	Blue Green Red		460 nm 515 nm 640 nm	2.4 mm							3.3 V	3.3 V	2.2 V	200 mcd 500 mcd 600 mcd
Kingbright AAA3528LSEEZGKQBKS		630 nm	460 nm	515 nm	Colorless		4-PLCC	180 mcd	30 mcd	20 mcd	Clear	2.1 mm	2 mA	2 mA	2 mA	Common Anode	4-SMD		120 °	465 nm 525 nm 621 nm	2.8 mm	3.2 mm	Surface Mount	Blue Green Red			2.4 mm							2.7 V	2.7 V	1.8 V
Kingbright AAA3528AVU/ASYKCGKCT	Round with Domed Top															Single			50 °				Surface Mount Right Angle	Green Yellow	Clear	574 nm 590 nm	2.85 mm		20mA Green 20mA Yellow									2 V 2.1 V
Kingbright AAA3528SURKCGKS		650 nm		574 nm	Colorless		4-PLCC				Clear	2.1 mm				Independent	4-SMD		120 °	570 nm 630 nm	2.8 mm	3.2 mm	Surface Mount	Green Red			2.4 mm							2.1 V		1.95 V	80 mcd 100 mcd		20 mA 20 mA
Kingbright AAA3528SURKCGKC		650 nm		574 nm	Colorless		4-PLCC	80 mcd		200 mcd	Clear	2.1 mm				Independent	4-SMD		120 °		2.8 mm	3.2 mm	Surface Mount	Green Red			2.4 mm							2.1 V		1.95 V			20 mA 20 mA	635 nm	570 nm
Kingbright AAA3528SURKSYKC		645 nm			Colorless		4-PLCC				Clear	2.15 mm				Independent	4-SMD	1.95 V 2 V	120 °	590 nm 630 nm	2.8 mm	3.2 mm	Surface Mount	Red Yellow			2.4 mm										240 mcd 320 mcd					590 nm	20mA Red 20mA Yellow
Kingbright AAA3528AVU/SURKCGKCT	Round with Domed Top							20 mcd		40 mcd						Single			50 °				Surface Mount Right Angle	Green Red	Clear		2.85 mm																	2.1 V	1.95 V	574 nm 645 nm	20 mA 20 mA
