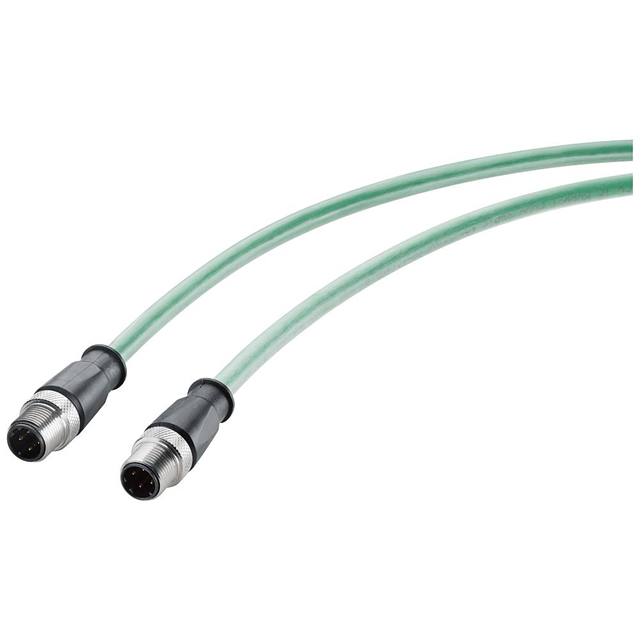

6XV18815AH10

Active

Siemens

CBL CIRC 4POS MALE TO MALE 3.28'

Search across all available documentation for this part.

Active

Siemens

CBL CIRC 4POS MALE TO MALE 3.28'

Technical Specifications

Parameters and characteristics for this part

Specification	6XV18815AH10

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	D
1st Connector Shell Size - Insert	M12
1st Connector Type	Receptacle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	4
2nd Connector Number of Positions Loaded	All
2nd Connector Orientation	D
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Receptacle
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Green
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Shielded

CBL CIRC 4POS MALE TO MALE 3.28'

Part	2nd Connector Type	1st Connector Gender	2nd Connector Orientation	1st Connector Orientation	2nd Connector Number of Positions	1st Connector Type	Shielding	1st Connector Number of Positions	Cable Type	2nd Connector Shell Size - Insert	2nd Connector Mounting Type	Assembly Configuration	1st Connector Shell Size - Insert	2nd Connector Number of Positions Loaded	Length [x]	Length [x]	1st Connector Mounting Type	Color	1st Connector Number of Positions Loaded	Cable Material
Siemens 6XV18815AH10	Receptacle	Male Pins	D	D	4	Receptacle	Shielded	4	Round	M12	Free Hanging (In-Line)	Standard	M12	All	1 m	3.28 ft	Free Hanging (In-Line)	Green	All	Polyvinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 77.01

General part information

Circular Cable Assembly Shielded 3.28' (1.00m)
