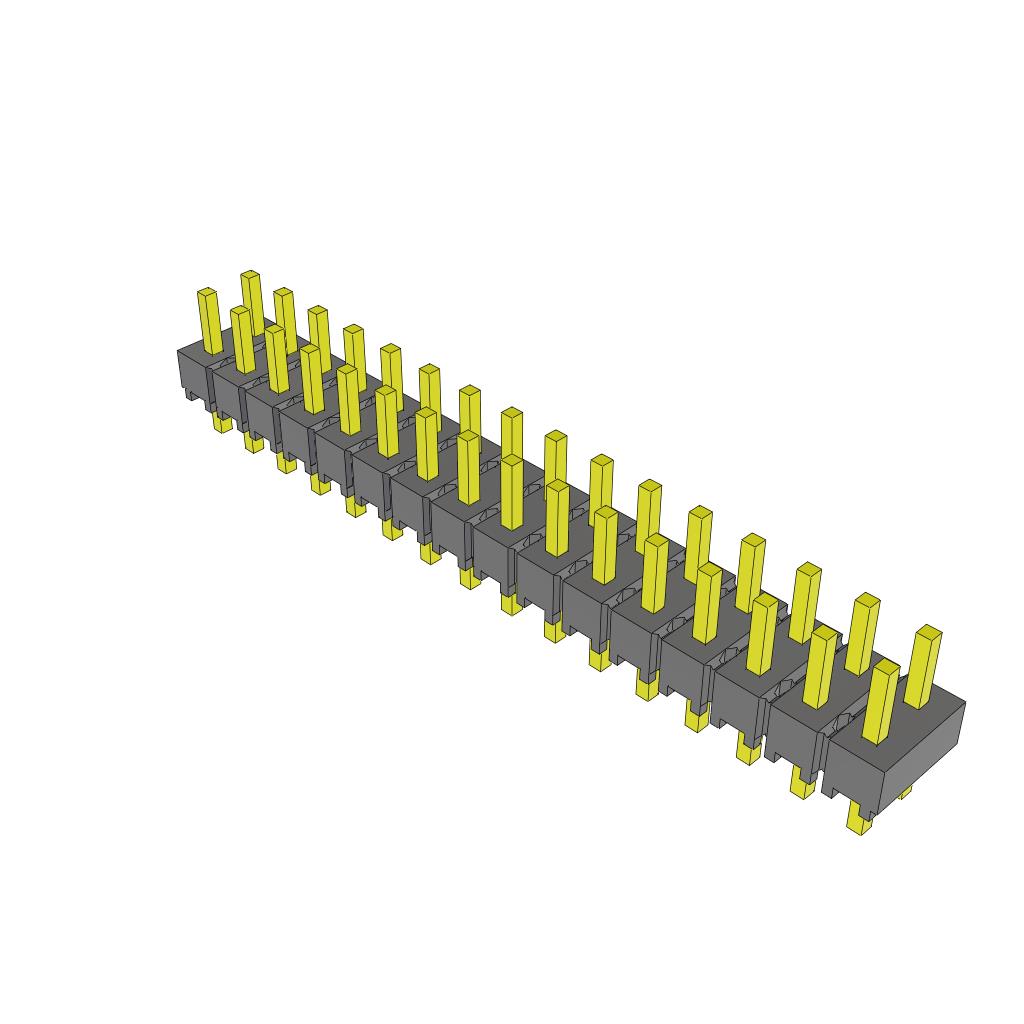

HMTSW-116-06-T-D-125

Active

Samtec Inc.

CONN HEADER VERT 32POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet HMTSW Datasheet +1

HMTSW-116-06-T-D-125

Active

Samtec Inc.

CONN HEADER VERT 32POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet HMTSW Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HMTSW-116-06-T-D-125

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.125 in
Contact Length - Mating	3.18 mm
Contact Length - Post	1.91 mm
Contact Length - Post [x]	0.075 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	7.62 mm
Overall Contact Length	0.3 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

HMTSW-116 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions Loaded	Current Rating (Amps)	Mounting Type	Contact Length - Post	Contact Length - Post	Insulation Color	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Contact Length - Mating	Contact Length - Mating [x]	Overall Contact Length	Overall Contact Length	Shrouding	Contact Shape	Number of Rows	Contact Finish - Post	Style	Fastening Type	Number of Positions	Connector Type	Material Flammability Rating	Contact Finish - Mating	Insulation Height	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions	Contact Length - Mating	Contact Length - Post [x]	Overall Contact Length [x]	Overall Contact Length [x]	Contact Length - Mating	Contact Length - Mating [x]
Samtec Inc. HMTSW-116-07-G-S-240	-55 °C	125 °C	Solder	All	3 A	Through Hole	0.09 "	2.29 mm	Natural	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	3 µin	0.076 µm	Male Pin	6.1 mm	0.24 in	0.43 in	10.92 mm	Unshrouded	Square	1	Gold	Board to Board Cable	Push-Pull	16	Header	UL94 V-0	Gold	0.1 in	2.54 mm
Samtec Inc. HMTSW-116-22-L-D-230-RA	-55 °C	125 °C	Solder	All	3 A	Through Hole Right Angle			Natural	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm			Male Pin	5.84 mm	0.23 in			Unshrouded	Square	2	Tin	Board to Board Cable	Push-Pull		Header	UL94 V-0	Gold	0.24 in	6.1 mm	2.54 mm	0.1 in
Samtec Inc. HMTSW-116-10-L-T-650	-55 °C	125 °C	Solder	All	3 A	Through Hole	0.08 in	2.03 mm	Natural	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm			Male Pin	16.51 mm		0.83 in	21.08 mm	Unshrouded	Square	3	Tin	Board to Board Cable	Push-Pull		Header	UL94 V-0	Gold	0.1 in	2.54 mm	2.54 mm	0.1 in	48	0.65 in
Samtec Inc. HMTSW-116-06-T-D-125	-55 °C	105 ░C	Solder	All	3 A	Through Hole		1.91 mm	Natural	Liquid Crystal Polymer (LCP)			Phosphor Bronze	0.1 in	2.54 mm			Male Pin	3.18 mm		0.3 in	7.62 mm	Unshrouded	Square	2	Tin	Board to Board Cable	Push-Pull		Header	UL94 V-0		0.1 in	2.54 mm	2.54 mm	0.1 in		0.125 in	0.075 in
Samtec Inc. HMTSW-116-07-G-T-230	-55 °C	125 °C	Solder	All	3 A	Through Hole	0.1 in	2.54 mm	Natural	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	3 µin	0.076 µm	Male Pin	5.84 mm	0.23 in	0.43 in	10.92 mm	Unshrouded	Square	3	Gold	Board to Board Cable	Push-Pull		Header	UL94 V-0	Gold	0.1 in	2.54 mm	2.54 mm	0.1 in	48
Samtec Inc. HMTSW-116-22-T-S-420	-55 °C	105 ░C	Solder	All	3 A	Through Hole		2.79 mm	Natural	Liquid Crystal Polymer (LCP)			Phosphor Bronze	0.1 in	2.54 mm			Male Pin	10.67 mm				Unshrouded	Square	1	Tin	Board to Board Cable	Push-Pull	16	Header	UL94 V-0		0.1 in	2.54 mm				0.42 in	0.11 in	0.63 "	16 mm
Samtec Inc. HMTSW-116-21-G-S-1060	-55 °C	125 °C	Solder	All	3 A	Through Hole	0.27 in	6.86 mm	Natural	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	3 µin	0.076 µm	Male Pin	1.06 "				Unshrouded	Square	1	Gold	Board to Board Cable	Push-Pull	16	Header	UL94 V-0	Gold	0.1 in	2.54 mm								26.92 mm
Samtec Inc. HMTSW-116-22-L-S-400	-55 °C	125 °C	Solder	All	3 A	Through Hole	0.13 in	3.3 mm	Natural	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm			Male Pin	10.16 mm				Unshrouded	Square	1	Tin	Board to Board Cable	Push-Pull	16	Header	UL94 V-0	Gold	0.1 in	2.54 mm				0.4 in		0.63 "	16 mm
Samtec Inc. HMTSW-116-07-G-S-230	-55 °C	125 °C	Solder	All	3 A	Through Hole	0.1 in	2.54 mm	Natural	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	3 µin	0.076 µm	Male Pin	5.84 mm	0.23 in	0.43 in	10.92 mm	Unshrouded	Square	1	Gold	Board to Board Cable	Push-Pull	16	Header	UL94 V-0	Gold	0.1 in	2.54 mm
Samtec Inc. HMTSW-116-21-G-D-1240	-55 °C	125 °C	Solder	All	3 A	Through Hole	0.09 "	2.29 mm	Natural	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	Phosphor Bronze	0.1 in	2.54 mm	3 µin	0.076 µm	Male Pin		1.24 in			Unshrouded	Square	2	Gold	Board to Board Cable	Push-Pull		Header	UL94 V-0	Gold	0.1 in	2.54 mm	2.54 mm	0.1 in							31.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.24
