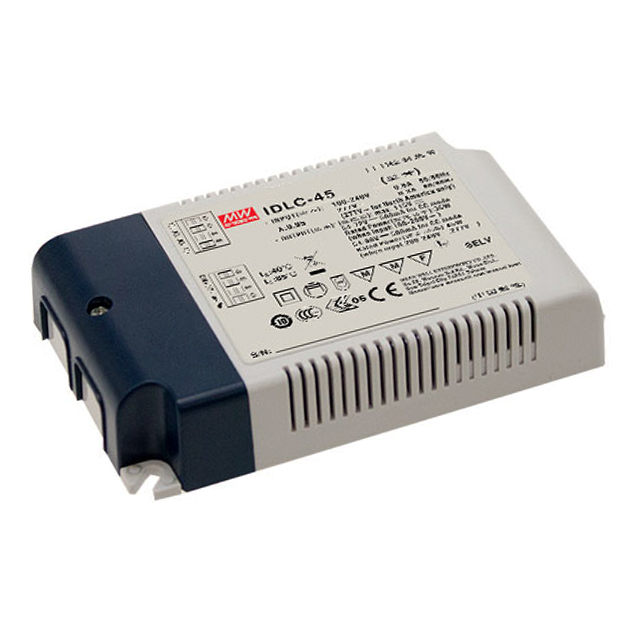

IDLC-45-500

Obsolete

MEAN WELL USA Inc.

LED DRVR CC AC/DC 54-90V 500MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IDLC-45-500

Obsolete

MEAN WELL USA Inc.

LED DRVR CC AC/DC 54-90V 500MA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	IDLC-45-500

Approval Agency	cURus, CE, ENEC, CB, CCC
Current - Output (Max) [Max]	500 mA
Dimming	Analog, PWM
Efficiency	85 %
Features	SCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Power (Watts)	45 W
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.72 in
Size / Dimension [y]	75 mm
Size / Dimension [y]	2.95 in
Size / Dimension [z]	25 mm
Size / Dimension [z]	0.98 in
Termination Style	Terminal Block
Topology	AC DC Converter
Type	Constant Current
Voltage - Input (Max) [Max]	295 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output [Max]	90 V
Voltage - Output [Min]	54 V

IDLC-45 Series

Part	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Topology	Current - Output (Max) [Max]	Type	Power (Watts)	Approval Agency	Number of Outputs	Features	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Isolation	Voltage - Output [Min]	Voltage - Output [Max]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Termination Style	Dimming	Standard Number
MEAN WELL USA Inc. IDLC-45A-350	295 VAC	90 VAC	AC DC Converter	350 mA	Constant Current	33 W	CB CCC CE cURus ENEC	1	SCP	86 %	85 °C	-20 C	Chassis Mount	3750 V	57 V	95 V	25 mm	120 mm	0.98 in	75 mm	2.95 in	4.72 in	Terminal Block	Analog PWM
MEAN WELL USA Inc. IDLC-45-1050	295 VAC	90 VAC	AC DC Converter	1.05 A	Constant Current	45 W	CB CCC CE cURus ENEC	1	SCP	84 %	85 °C	-20 C	Chassis Mount	3750 V	26 V	43 V	25 mm	120 mm	0.98 in	75 mm	2.95 in	4.72 in	Terminal Block	Analog PWM
MEAN WELL USA Inc. IDLC-45-500	295 VAC	90 VAC	AC DC Converter	500 mA	Constant Current	45 W	CB CCC CE cURus ENEC	1	SCP	85 %	85 °C	-20 C	Chassis Mount	3750 V	54 V	90 V	25 mm	120 mm	0.98 in	75 mm	2.95 in	4.72 in	Terminal Block	Analog PWM
MEAN WELL USA Inc. IDLC-45-700DA	295 VAC	90 VAC	AC DC Converter	1.05 A	Constant Current	33 W	CB CCC CE cURus ENEC	1	SCP	83 %	85 °C	-20 C	Chassis Mount	3750 V	19 V	32 VDC	25 mm	120 mm	0.98 in	75 mm	2.95 in	4.72 in	Terminal Block	Analog PWM	UL 8750
MEAN WELL USA Inc. IDLC-45A-700	295 VAC	90 VAC	AC DC Converter	700 mA	Constant Current	45 W	CB CCC CE cURus ENEC	1	SCP	85 %	85 °C	-20 C	Chassis Mount	3750 V	38 V	64 V	25 mm	120 mm	0.98 in	75 mm	2.95 in	4.72 in	Terminal Block	Analog PWM
MEAN WELL USA Inc. IDLC-45A-500	295 VAC	90 VAC	AC DC Converter	500 mA	Constant Current	45 W	CB CCC CE cURus ENEC	1	SCP	85 %	85 °C	-20 C	Chassis Mount	3750 V	54 V	90 V	25 mm	120 mm	0.98 in	75 mm	2.95 in	4.72 in	Terminal Block	Analog PWM
MEAN WELL USA Inc. IDLC-45-700	295 VAC	90 VAC	AC DC Converter	700 mA	Constant Current	45 W	CB CCC CE cURus ENEC	1	SCP	85 %	85 °C	-20 C	Chassis Mount	3750 V	38 V	64 V	25 mm	120 mm	0.98 in	75 mm	2.95 in	4.72 in	Terminal Block	Analog PWM
MEAN WELL USA Inc. IDLC-45-1050DA	295 VAC	90 VAC	AC DC Converter	1.05 A	Constant Current	33 W	CB CCC CE cURus ENEC	1	SCP	83 %	85 °C	-20 C	Chassis Mount	3750 V	19 V	32 VDC	25 mm	120 mm	0.98 in	75 mm	2.95 in	4.72 in	Terminal Block	Analog PWM	UL 8750

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 24.32

Description

General part information

IDLC-45 Series

500mA 54 ~ 90V Constant Current LED Driver AC DC Converter Topology 1 Output
