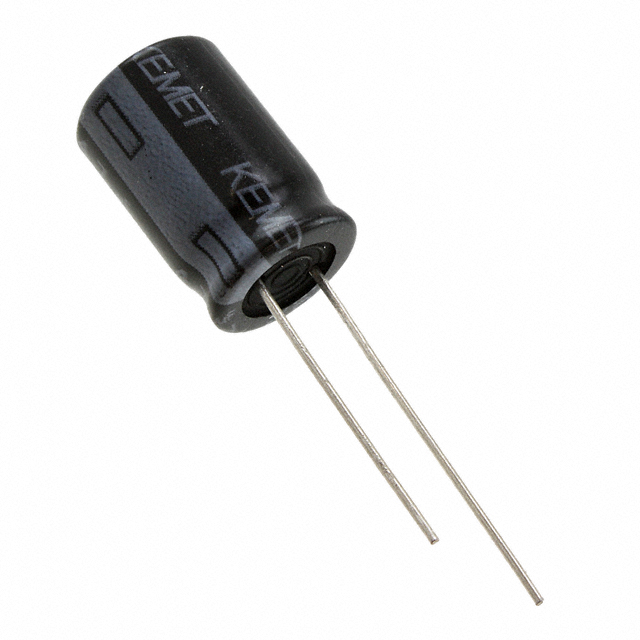

ESG475M400AH2AA

Active

KEMET

CAP ALUM 4.7UF 20% 400V RADIAL

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 4.7UF 20% 400V RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	ESG475M400AH2AA

Applications	General Purpose
Capacitance	4.7 µF
ESR (Equivalent Series Resistance)	3.5 Ohm
Height - Seated (Max) [Max] [z]	17 mm
Height - Seated (Max) [Max] [z]	0.669 in
Impedance	3.5 Ohms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	5000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	80 mA
Ripple Current @ Low Frequency	50 mA
Size / Dimension [diameter]	10 mm
Size / Dimension [diameter]	0.394 in
Tolerance	20 %
Voltage - Rated	400 V

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Mounting Type	ESR (Equivalent Series Resistance)	Applications	Voltage - Rated	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Spacing	Lead Spacing	Impedance	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ High Frequency	Capacitance	Lifetime @ Temp.	Tolerance
KEMET ESG475M400AH2AA	10 mm	0.394 in	Polar	Through Hole	3.5 Ohm	General Purpose	400 V	50 mA	17 mm	0.669 in	5 mm	0.197 in	3.5 Ohms	Radial Can	-40 °C	105 ░C	80 mA	4.7 µF	5000 Hrs	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4.7 µF 400 V Aluminum Electrolytic Capacitors Radial, Can 3.5Ohm @ 100kHz 5000 Hrs @ 105°C
