R143608000

Active

Radiall USA, Inc.

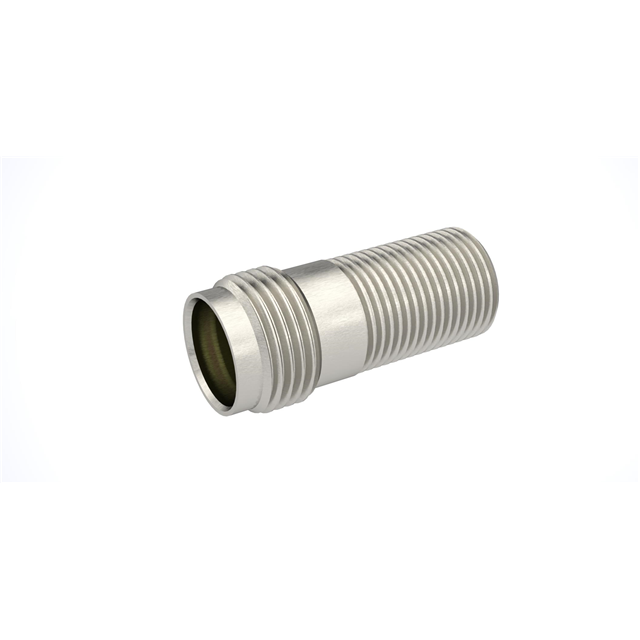

TNC / THREAD-IN JACK RECEPTACLE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC / THREAD-IN JACK RECEPTACLE

Technical Specifications

Parameters and characteristics for this part

Specification	R143608000

Body Finish	Gold
Body Material	Nickel
Center Contact Material	Beryllium Copper, Nickel Steel
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	500 V

Part	Mounting Type	Body Material	Center Contact Plating	Center Contact Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Shield Termination	Number of Ports	Mating Cycles	Body Finish	Connector Style	Impedance	Contact Termination	Housing Color	Frequency - Max [Max]	Connector Type	Mounting Feature	Features
Radiall USA, Inc. R143608000	Free Hanging (In-Line)	Nickel	Gold	Beryllium Copper Nickel Steel	Polytetrafluoroethylene (PTFE)	-65 ░C	100 °C	500 V	Solder	1	500	Gold	TNC	50 Ohms	Solder	Gold	11 GHz	Female Socket Jack
Radiall USA, Inc. R143603000		Brass	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	500 V	Solder	1	500	Nickel	TNC	50 Ohms	Solder Cup	Silver	11 GHz	Female Socket Jack	Bulkhead - Rear Side Nut	Extended Insulation
Radiall USA, Inc. R143603000W		Brass	Gold	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-65 ░C	165 °C	500 V	Solder	1	500	Nickel	TNC	50 Ohms	Solder Cup	Silver	11 GHz	Female Socket Jack	Bulkhead - Rear Side Nut	Extended Insulation

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 144.78

General part information

TNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Solder
