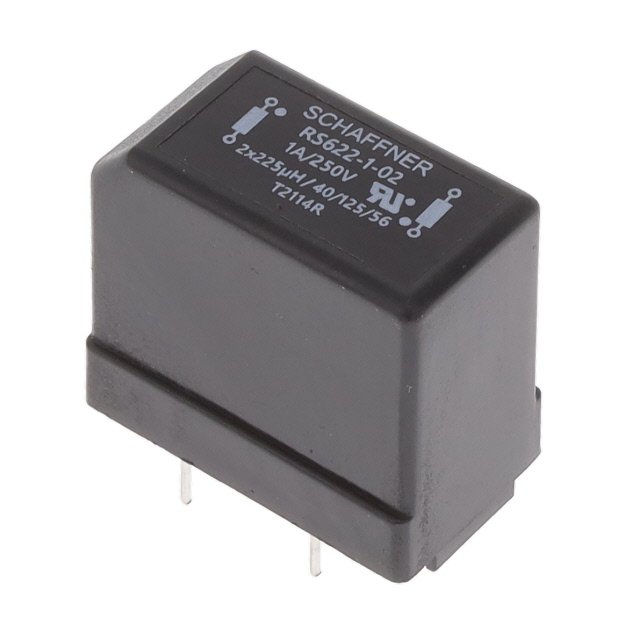

RS622-1-02
ObsoleteTE Connectivity Raychem Cable Protection
LINE FILTER 250VAC 1A TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RS622-1-02
ObsoleteTE Connectivity Raychem Cable Protection
LINE FILTER 250VAC 1A TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RS622-1-02 |
|---|---|
| Applications | General Purpose |
| Configuration | Single Stage |
| Current | 1 A |
| Filter Type | Single Phase |
| Frequency - Operating | 400 Hz |
| Inductance | 900 µH |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Voltage - Rated AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.91 | |
| 10 | $ 4.79 | |||
| 25 | $ 4.25 | |||
| 40 | $ 4.02 | |||
| 80 | $ 3.72 | |||
Description
General part information
RS622 Series
Single Phase EMC/EMI Line Filter 1 A 250V DC ~ 400Hz Single Stage
